Description

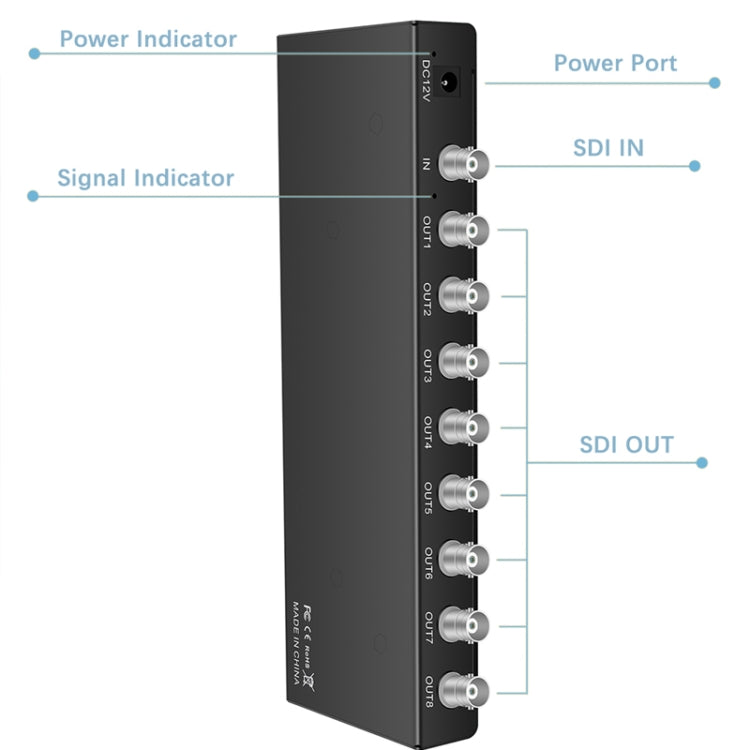

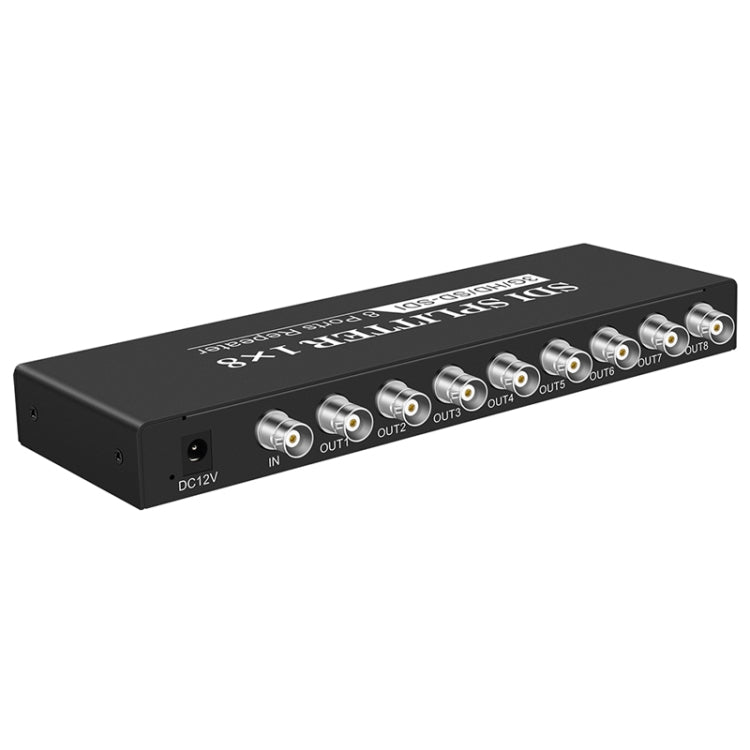

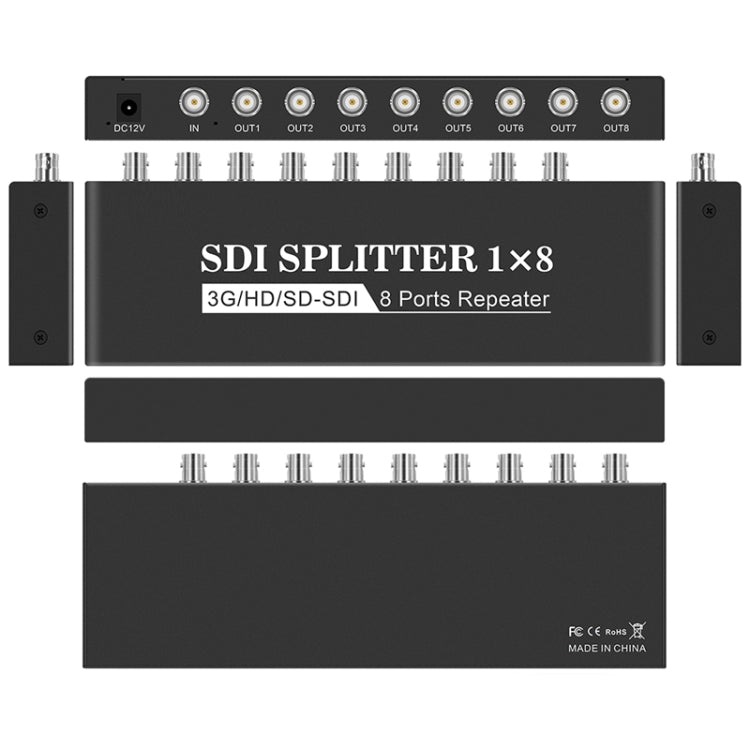

1 In 8 Out SD-SDI / HD-SDI / 3G-SDI Distribution Amplifier Video SDI Splitter is designed to distribute SDI signals to multiple outputs. It is suitable for applications requiring the connection of multiple display devices to a single SDI source.
- SDI output interfaces: BNC SDI x2, SDI x4, SDI x8
- SDI standard compatibility: SMPTE 424M, SMPTE 292M, SMPTE 259M-C
- SDI signal formats supported: SD-SDI, HD-SDI, 3G-SDI
- Supported SDI rates: 143-2970 MB/s
- SDI impedance: 75 ohms
- Supported resolutions: 480i 60Hz, 576i 50Hz, 720P 50Hz, 720P 60Hz, 1080i 50Hz, 1080i 60Hz, 1080P 24Hz, 25Hz, 30Hz, 50Hz, 60Hz
- SDI signal output amplitude: 800 mVp-p
- Dimensions: 219 mm x 70 mm x 24.5 mm
- Installation steps: Connect SDI input to signal source, connect SDI output to display devices, power on the unit
- SDI distribution function: Supports SD-SDI (270 Mbps), HD-SDI (1.485 Gbps), 3G-SDI (2.97 Gbps) video formats
- Extension function: Supports cable lengths up to Belden-1694A; SDI input/output distances: SD - 400m, HD - 200m, 3G - 100m (theoretical values)
- Voltage input: DC 5V to 36V, power consumption up to 2W
- Design: Pure hardware processing, plug and play, automatic detection of SDI signals; LED indicator for signal status
