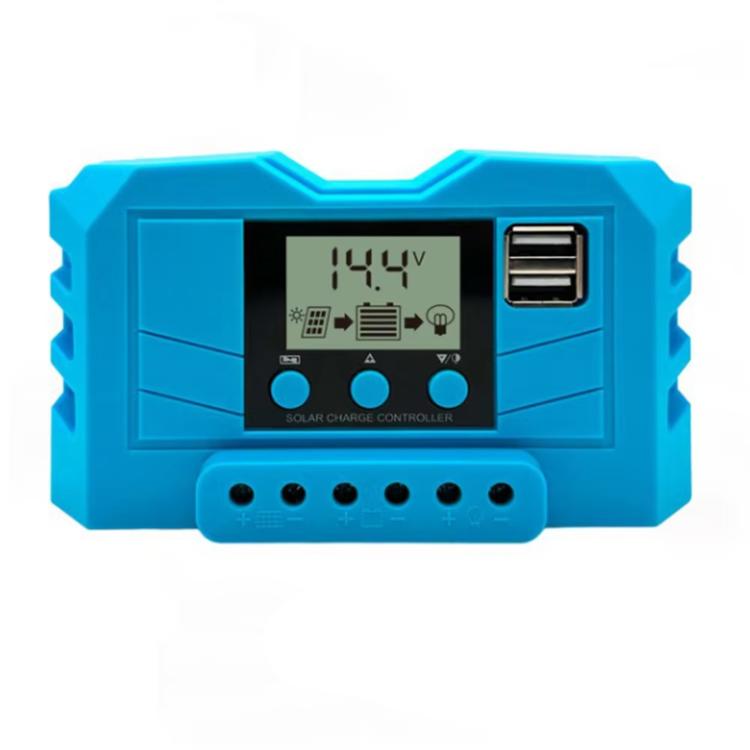

10A 12V 24V Lithium Lead Acid Solar Charge Controller PWM PV Controller With LCD Display

• Product type: Others
• Compatibility: 12V/24V batteries
• Material: ABS engineering plastics
• Key feature: LCD display
• Color/Variant: Not specified
• Intended use: Everyday use
• Category: Solar Power

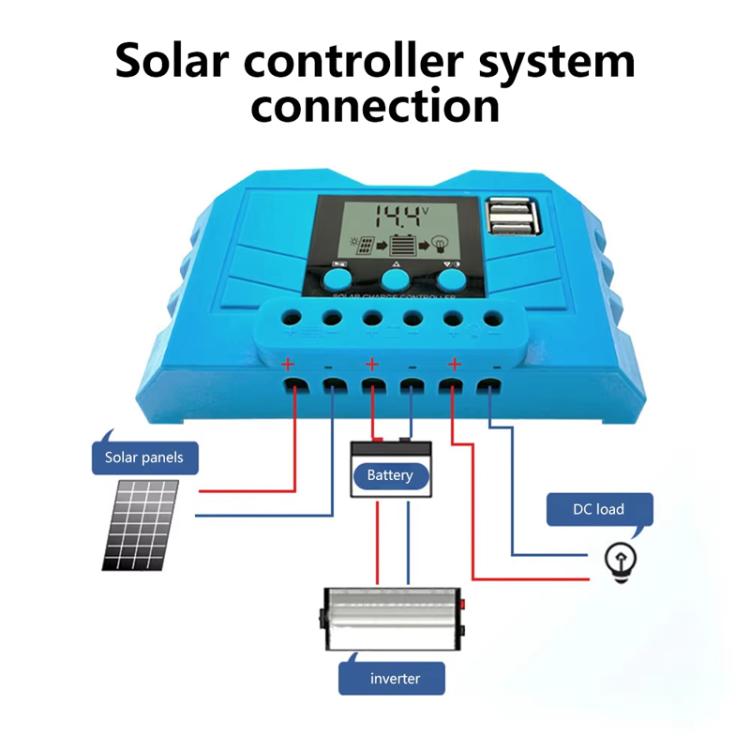

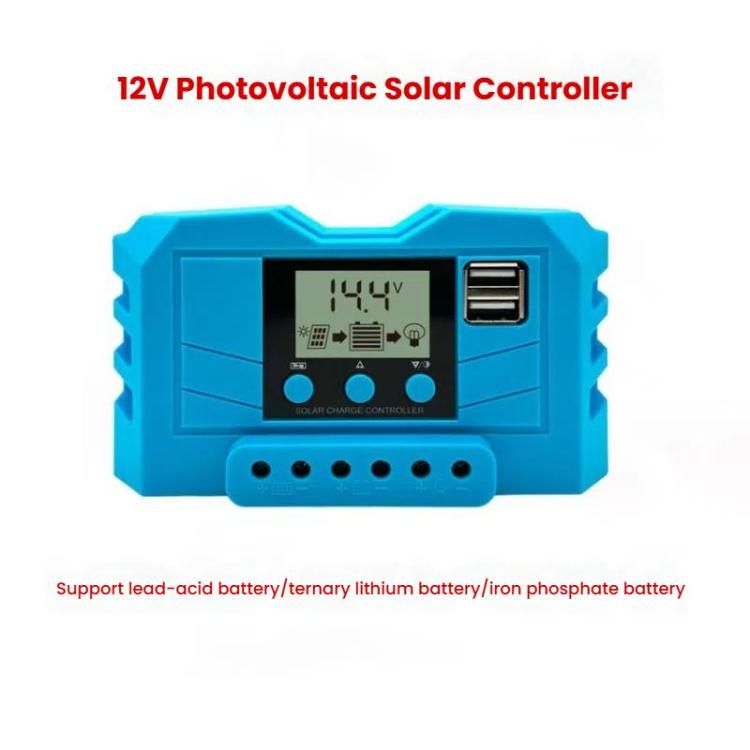

-Supports battery type (factory setting defaults to B2):-B1=Lead-acid battery 12V/24V (automatic recognition)-B2=Lithium ion battery (3 strings of 3.7V=11.1V lithium battery)-B3=Lithium iron phosphate battery (4 strings of 3.2V=12.8V)-Safe use recommendations:1. This controller is suitable for 3 kinds of batteries, lead-acid batteries (12V/24V battery automatic identification), lithium-ion batteries, lithium iron phosphate batteries, please do not use in other batteries2. Install the controller as close to the battery as possible to avoid the voltage drop caused by long wires, which will affect the normal voltage judgment3. When installing for the first time, please set the battery type according to the battery type, and make sure the battery has enough voltage so that the controller can recognize the correct battery type4. This controller can only use photovoltaic panels as a charging source, please do not use DC or other power sources as a charging source5. The controller will be hot when running, please pay attention to install the controller on a flat, well-ventilated surface-Technical parameters:1. System voltage: 12V/24V auto adaptive2. Rated charging current: 10A, 20A, 30A3. Rated discharge current: 10A4. Maximum photovoltaic voltage: Maximum 23V for 12V battery; Maximum 46V for 24V battery5. Charging cut-off voltage: 14.4V(B1), 12.6V(B2), 14.6V(B3)6. Discharge cut-off voltage: 10.7V(B1), 9V(B2), 10V(B3)7. Discharge recovery voltage: 12.6V(B1), 10.5V(B2), 12V(B3)8. Light-controlled light on threshold: PV panel 8V (light-controlled light on with a delay)9. Light control off threshold: PV panel 8V (light control off with a delay)10. USB output: 2-channel USB output, 5V/1A (maximum)11. Standby current: less than 10mA12. Operating temperature: -35- 60 degrees Celsius13. Weight: about 165g14. Size: about 13.2 x 7.5 x 3cm15. Warm tips: the battery voltage displayed on the screen will have a small error, please prevail in practice
