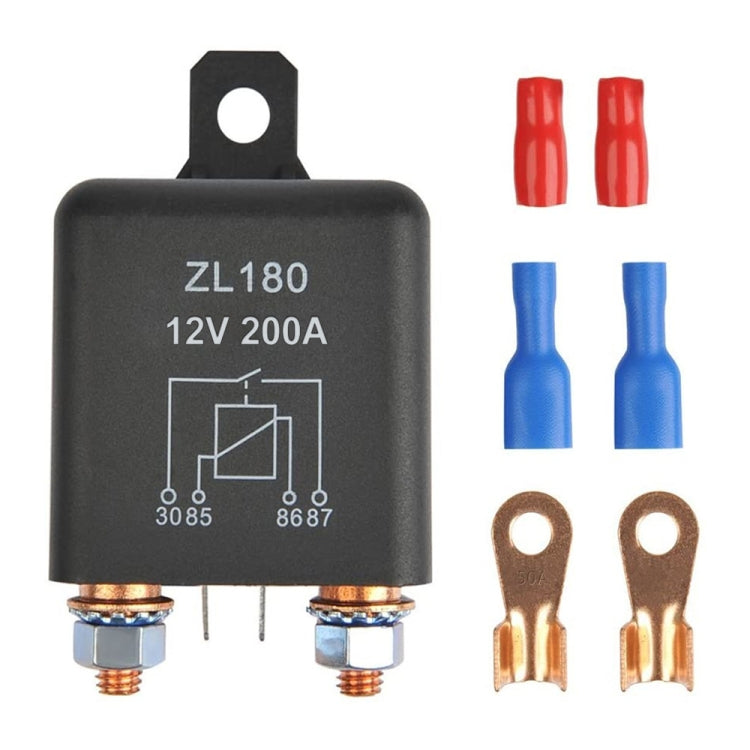

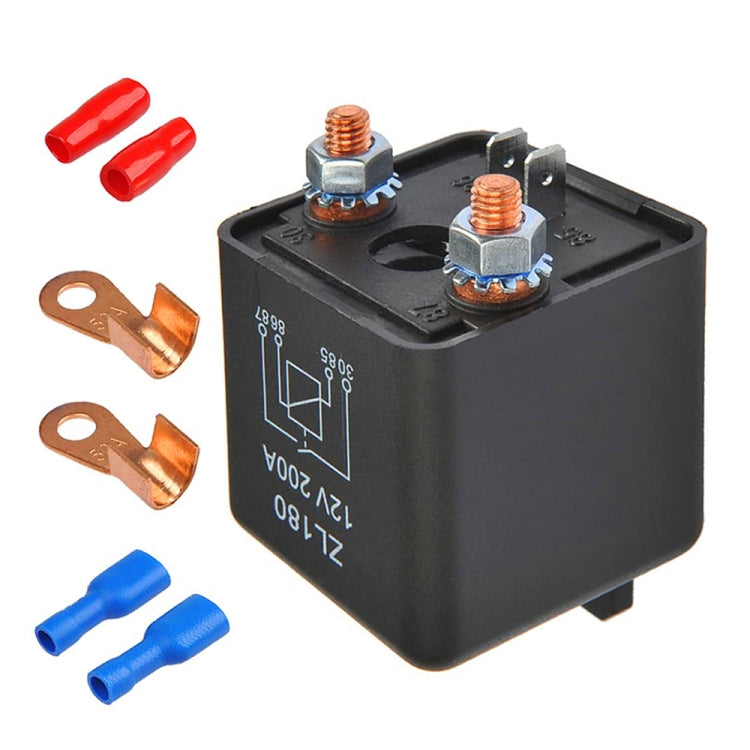

12V 200A Car Start Relay with Accessories

• Product type: Relays
• Compatibility: 12V systems
• Material: Plastic
• Key feature: High coil capacity
• Intended use: High-current applications
• Category: Replacement Parts

1. High 200A coil capacity: able to handle these high-current applications with ease, heavy duty opener or normally open (on / off) relay. With 2pin footprint + 2-port accessories, hundreds of applications include-starter toetet, e top view, trunk unlocking, Polarity change, central locking / actuator control. 2. High quality durable, firm and stable contact load: high performance perfect for universal 12V applications, vinyl install tool for building tools, industrial tools, advertising film, mobile s n install s n protector install. 3. Contact details: - Contact material: AgSnO12 - Contact form: Normally open - Contact Ratings: None: 200A 14 / 28VDC - Contact resistance: 100mMax at 6V DC 1A - Max switching current: 500A (5 ms) - Max switching voltage: 75VDC - Max switching power: 2000W - Expected lifespan Electric: 100,000 operations (at 30 operations / min) - Mechanical life: 10,000,000 operations 4. Coil Specification: 4. Coil specifications: - Rated voltage (VDC): 12V - Coil resistance (4,8W): 30 - Operate voltage max(VDC): 6.0 ~ 8.0 - Release voltage (VDC): 1.2 ~ 3.6 - Overload voltage max (VDC): 15.6 5. Characteristics: - Temperature range: -30 ~ + 80 Celsius - Vibration resistance: 10 ~ 55Hz, 1.5mm - Impact resistance: operation extreme: 10g, damage limits: 100g - Humidity: 40% ~ 85% - Insulation resistance: 100 mOhm min at 500 VDC - Dielectric strength between open contacts 500VAC (for one minute / s) - Between contact and coil: 750VAC (for one minute / s) - Operating time: 7ms - Release time: 5ms - Material: plastic
