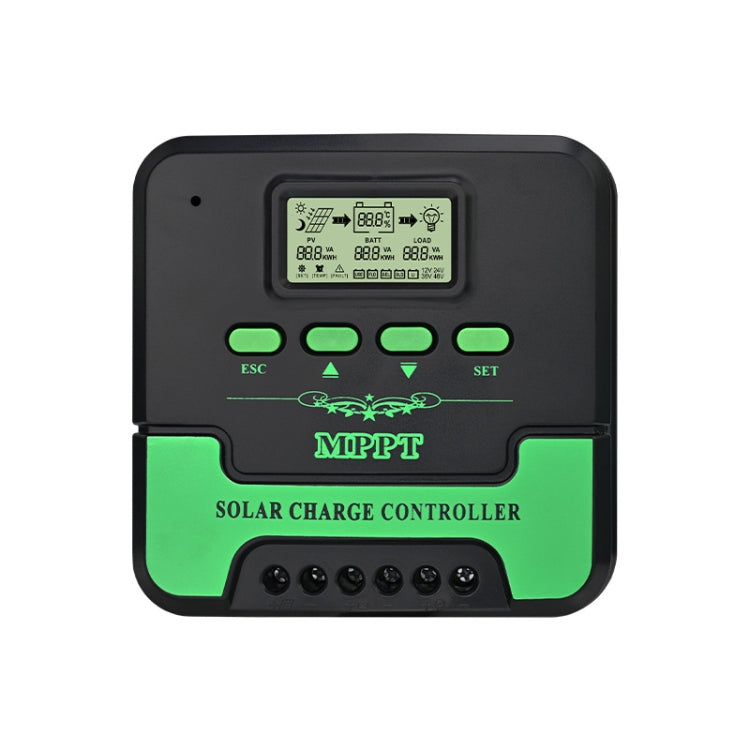

12V/24V 10A MPPT Smart Solar Charge Controller, Model: CM-D10

• Product type: Others
• Compatibility: 12V/24V systems
• Material: ABS+metal
• Key feature: High-definition LCD display
• Color/Variant: N/A
• Intended use: Solar power generation systems
• Category: Consumer Electronics

1. Material: ABS+metal
2. System voltage: 12V/24V self-identification
3. No-load loss: less than 0.4W
4. Solar input voltage: 50V VOC (MAX)
5. Battery voltage: 9-32V
6. Voltage range: battery voltage +2V~50V (MAX)
7. Rated charging current: 10A
8. Rated load current: 20A
9. USB output: 5V/3A
10. Panel input power (MAX): 120W/12V; 240W/24V
11. Temperature compensation coefficient: -2mv/degrees Celsius/2V (default value)
12. Working temperature: -10~+65 degrees Celsius
13. Protection level: IP21
14. Electromagnetic compatibility: in compliance with EN61000, EN55022, EN55024
15. Application scope of solar controller: solar street lights, solar roofs, solar awnings, solar power generation systems, solar RVs, solar billboards, etc.
16. System operation High-definition LCD display screen, display timing settings corresponding to the LCD display, clear observation of equipment operation status, convenient modification and setting of operating parameters
17. The use of large-section, large-pitch wiring ports increases insulation performance and installation reliability, effectively reduces circuit voltage drop and consumption
18. Multiple USB charging ports, support most USB port devices on the market, mobile phones, tablets, game consoles, etc.
19. Size: 13x13x5.8 cm
20. Weight: 376 g
