Description

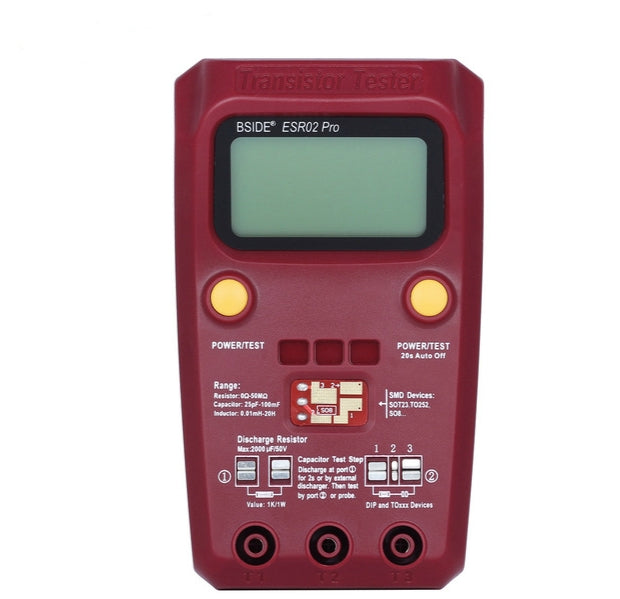

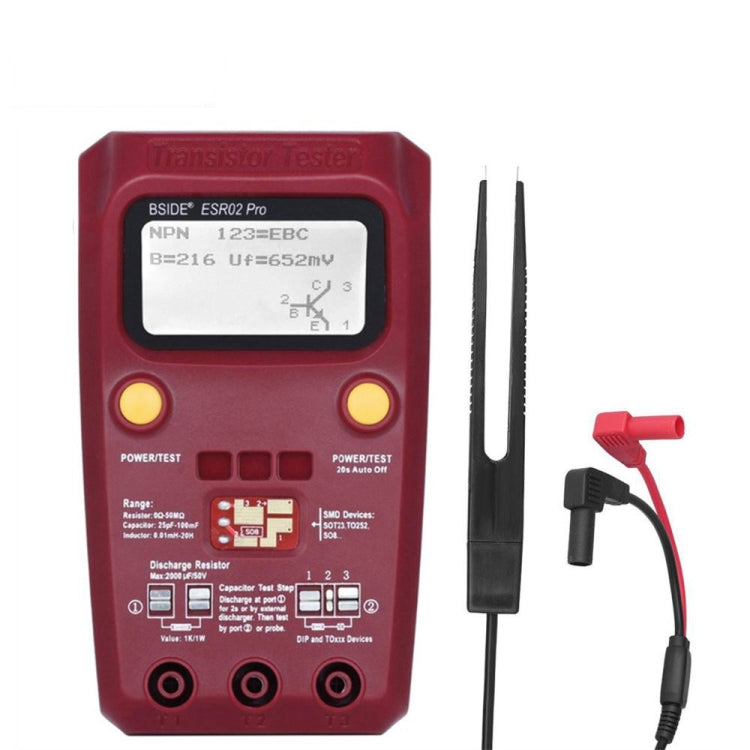

The BSIDE ESR02 Pro Digital Transistor Test Table M328 is a digital multimeter designed for testing various electronic components. It is suitable for everyday use in electronics repair and testing applications.
- Product Type: Digital Multimeter
- Brand: BSIDE
- Compatibility: BSIDE ESR02 Pro
- Material: Durable
- Key Feature: Automatic detection of components
- Operation: Two-button operation
- Power Consumption: Less than 20 nA in shutdown mode
- Automatic detection of: NPN and PNP transistors, N-channel and P-channel MOSFETs, diodes, thyristors, resistors, capacitors
- Measurement Capabilities: Bipolar Transistor Current Amplification Factor, Base-Emitter Threshold Voltage, Gate MOSFET Threshold Voltage, Gate Capacitance
- Resistance Measurement: Resolution of 0.1Ω, can measure up to 50MΩ
- Capacitance Measurement: 325pF to 100mF with 1pF resolution
- Equivalent Series Resistance Measurement: For capacitors over 2μF
- Diode Testing: Displays forward voltage and reverse capacitance
- Display: 1602 LCD with backlight
- Test Speed: Approximately 2 seconds (longer for large capacitors)
- Automatic Shutdown: Yes, to conserve battery life
- One-Click Operation: Boot test and acquisition
