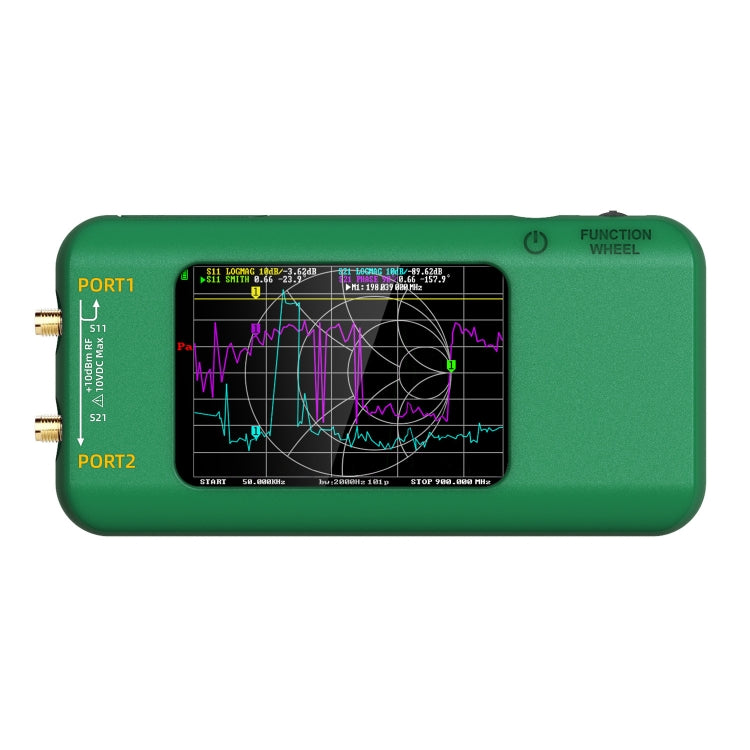

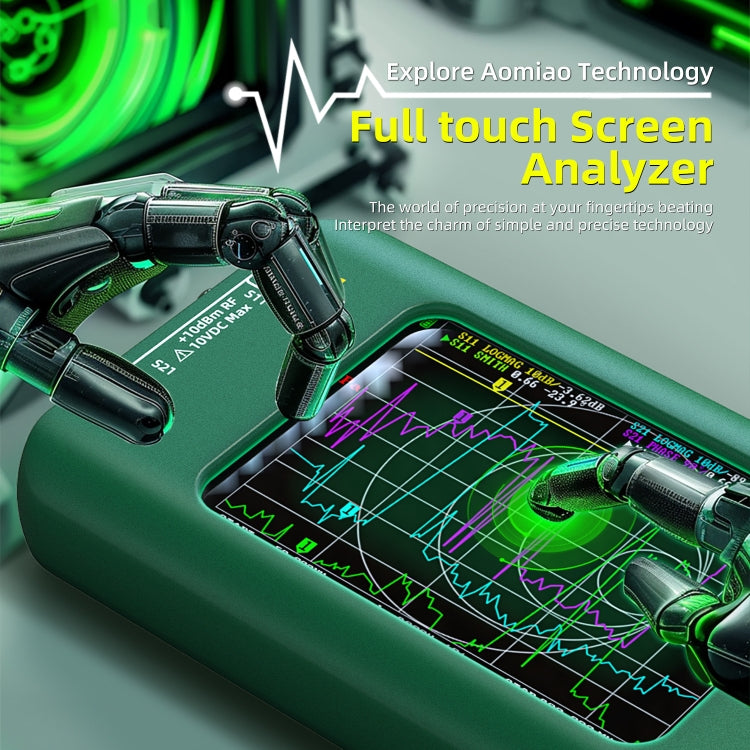

BSIDE P5 Handheld Vector Network Analyser Colorful Screen Network Tester

• Product type: Lan Cable and Tools
• Brand: BSIDE
• Compatibility: Handheld Vector Network Analyser
• Material: Not specified
• Key feature: Colorful TFT screen
• Color/Variant: Not specified
• Intended use: Everyday use
• Category: Networking Accessories

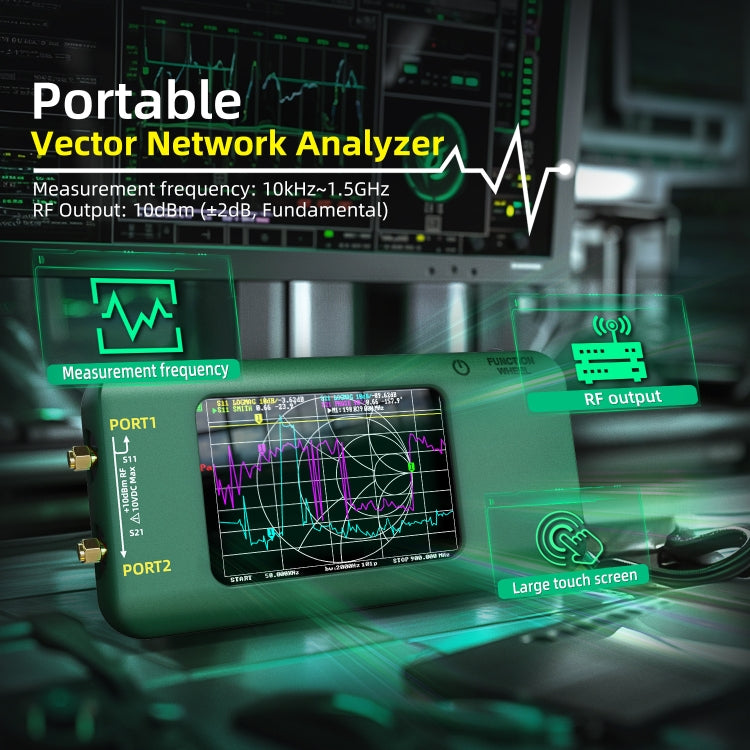

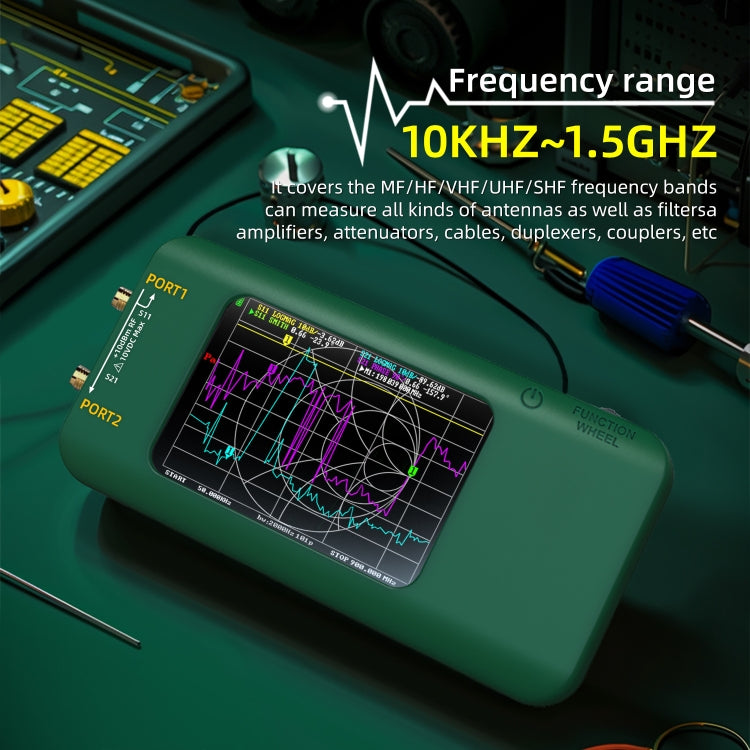

1. Measuring frequency: 10kHz-1.5GHz
2. RF output: 10dBm
3. Frequency accuracy: less than 2ppm
4. Frequency stability: less than 0.5ppm
5. Measurement range: 70dB(50kHz-300MHz)/60dB(300-900MHz)/40dB(0.9G-1.5GHz)
6. Port SWR: less than 1.1

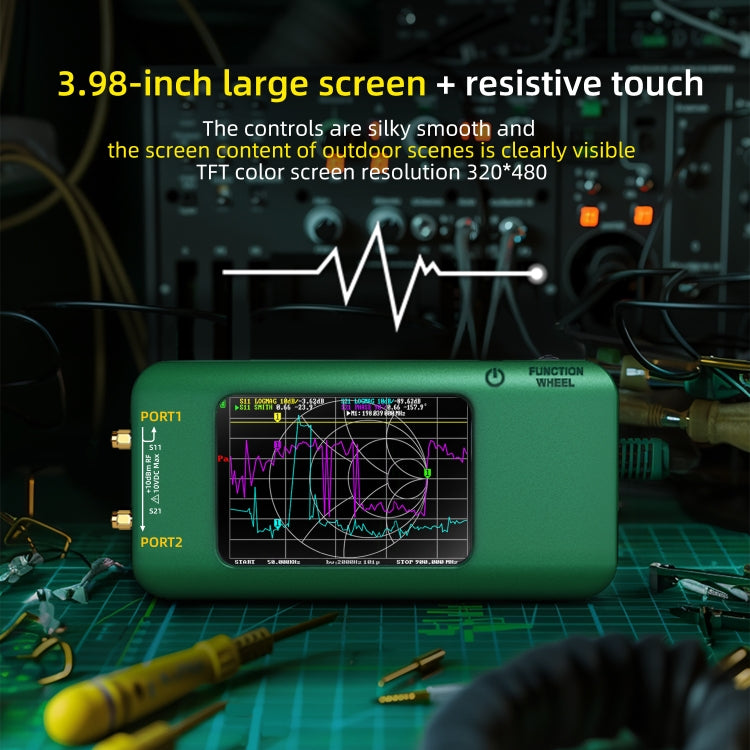

7. Display: 3.98-inch TFT colour screen (320 x 480)
8. Power supply: built-in 3000mAh lithium battery, maximum charging current 2A
9. Number of calibration points: maximum 401 (optional), unlimited when connected to a PC
10. Number of scanning points: maximum 401 (optional), unrestricted when connected to a PC
11. Scanning point speed: greater than 600 p/s (RBW = 4000Hz)
12. Display tracking: 4
13. Marker: 8
14. Setting save: 7

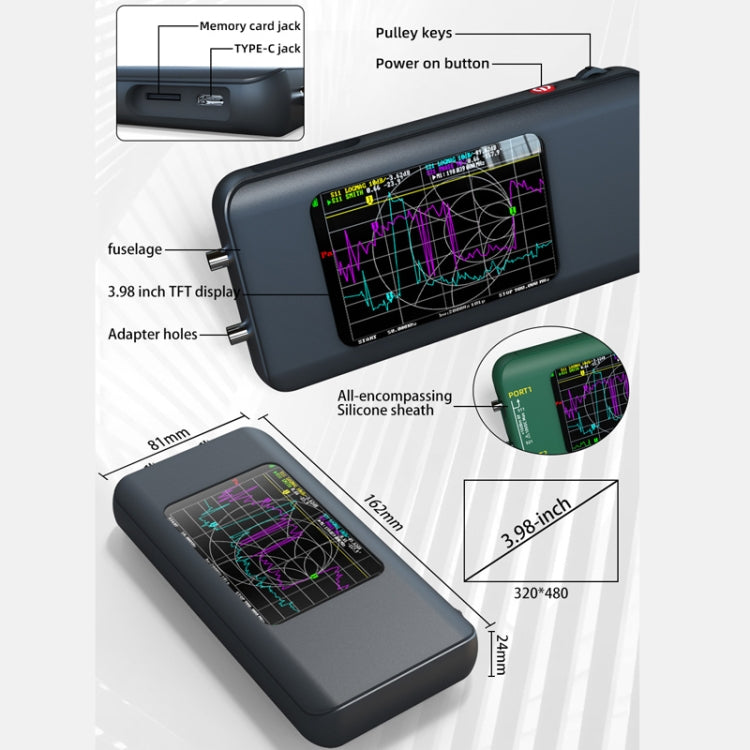

15. Size: about 16.2 x 8.1 x 2.4cm
16. Weight: about 251g

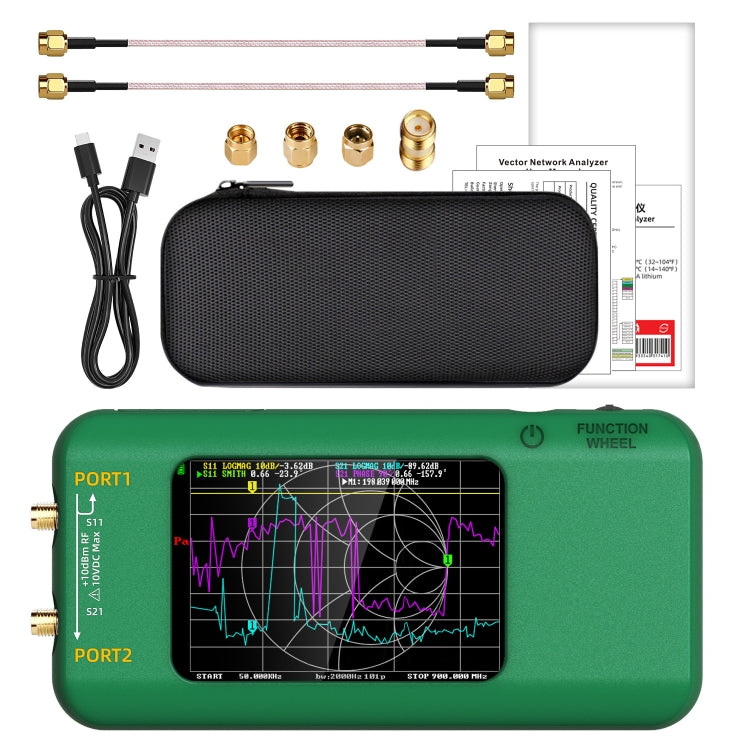

Packing list:
- Network analyser x 1
- Connector x 4
- SMA extension cable x 2
- Type-C cable x 1
- EVA storage bag x 1
