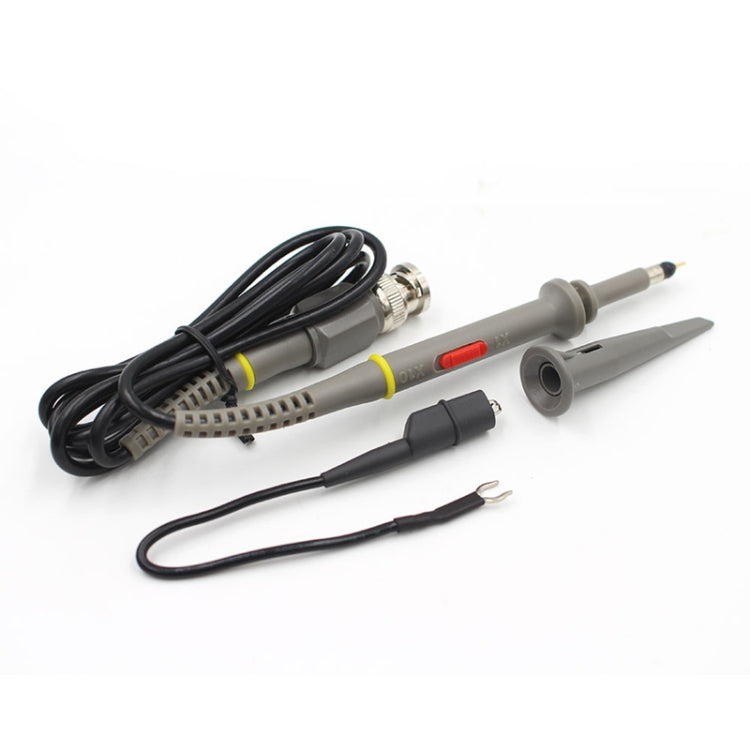

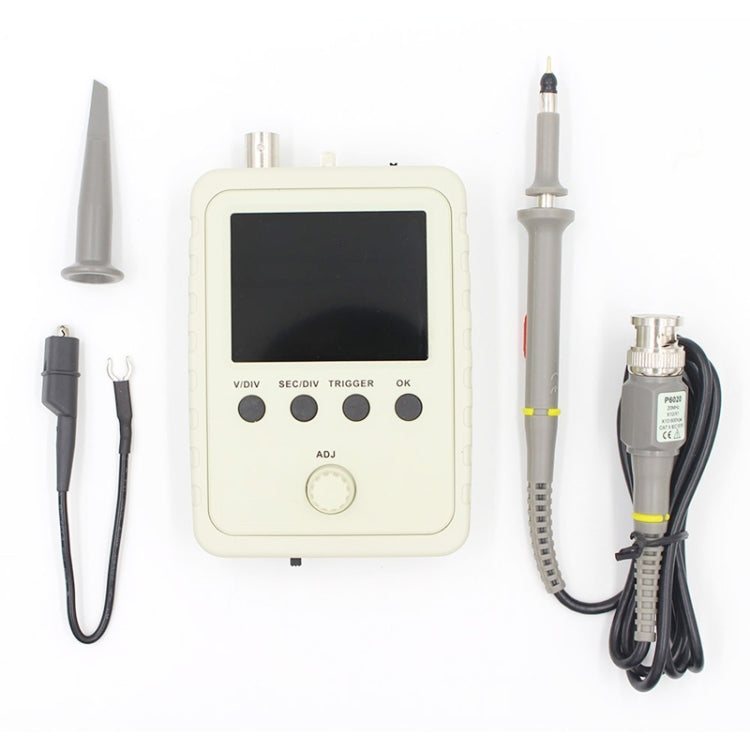

DSO150 Shell Oscilloscope Kit with BNC Probe
DSO150 Shell Oscilloscope Kit with BNC Probe
Spread the cost
No lump sum. No stress. Pick a repayment term that works for your budget — and keep your cash flow intact.
- R308.24/mo 3 months
- R155.86/mo 6 months
- R82.26/mo 12 months
- From R308.24/month over 3 months, or as low as R82.26/month over 12. Total repayable over 12 months: R987.12. Interest at 20.75% p.a. applies.
- Quick online application — most people get a decision within minutes. Your first payment only kicks in 30 days after you buy.
- Mobicred is a registered South African credit provider (NCR reg. NCRCP7852). Available to SA residents aged 18+ with a valid ID and bank account.
At checkout, simply select Mobicred as your payment method.
Continue to checkoutDon't have Mobicred yet? Apply free — takes about 2 minutes →
Mobicred is a revolving credit facility provided by Retail Capital (Pty) Ltd, a registered credit provider (NCR reg. NCRCP7852) in terms of the National Credit Act 34 of 2005. Credit is subject to approval and an affordability assessment. Interest rate: 20.75% p.a. compounded monthly (1.7292%/month). Available to South African residents aged 18 and older. Full terms & conditions apply.
Import Taxes & Duties Included
6-13 business days
In Stock CHN
Processing time: 1-3 days
Couldn't load pickup availability
Description

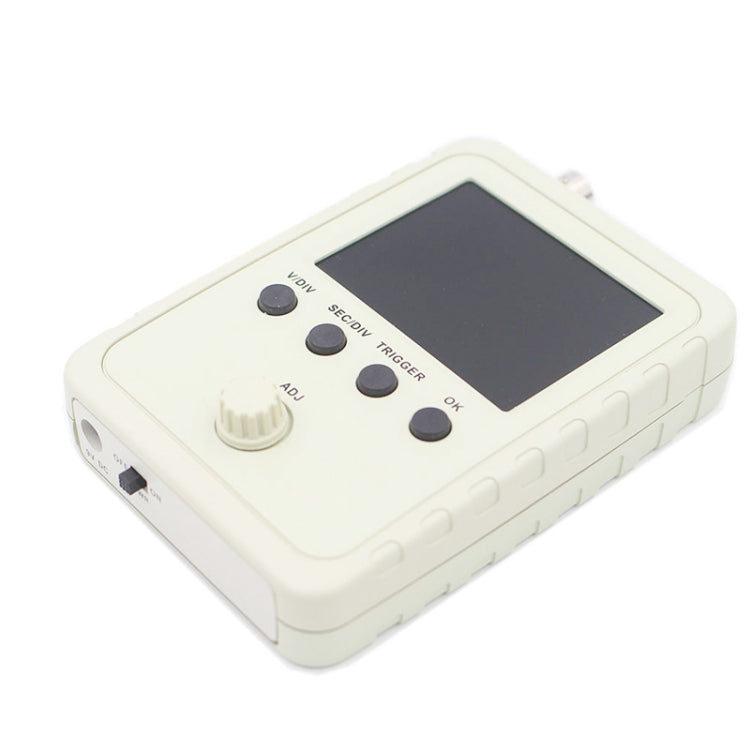

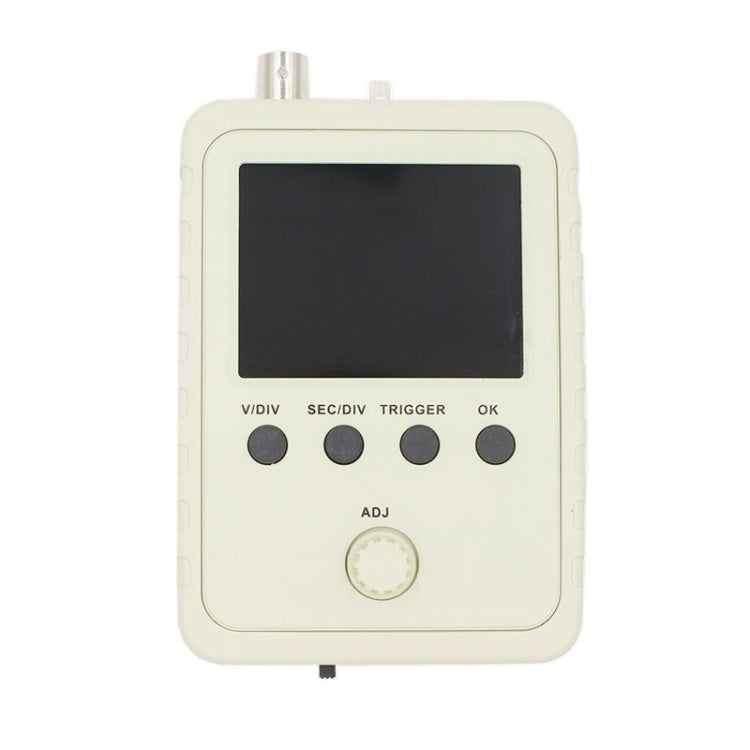

The DSO150 Shell Oscilloscope Kit is a testing tool designed for electronic applications. It is suitable for observing and analyzing waveforms in various testing scenarios.
- Product Type: Other Tester Tool
- Compatibility: DSO150
- Material: Durable
- Key Feature: High accuracy and sampling rate
- Highest Real-Time Sampling Rate: 1Msps
- Accuracy: 12Bit
- Sampling Buffer Depth: 1024 bytes
- Analog Bandwidth: 0-200KHz
- Vertical Sensitivity: 5mV / Div – 20V / Div (progressive in 1-2-5 way)
- Adjustable Vertical Displacement: Yes
- Input Impedance: 1MΩ
- Maximum Input Voltage: 50Vpp (1: 1 probe), 400Vpp (10: 1 probe)

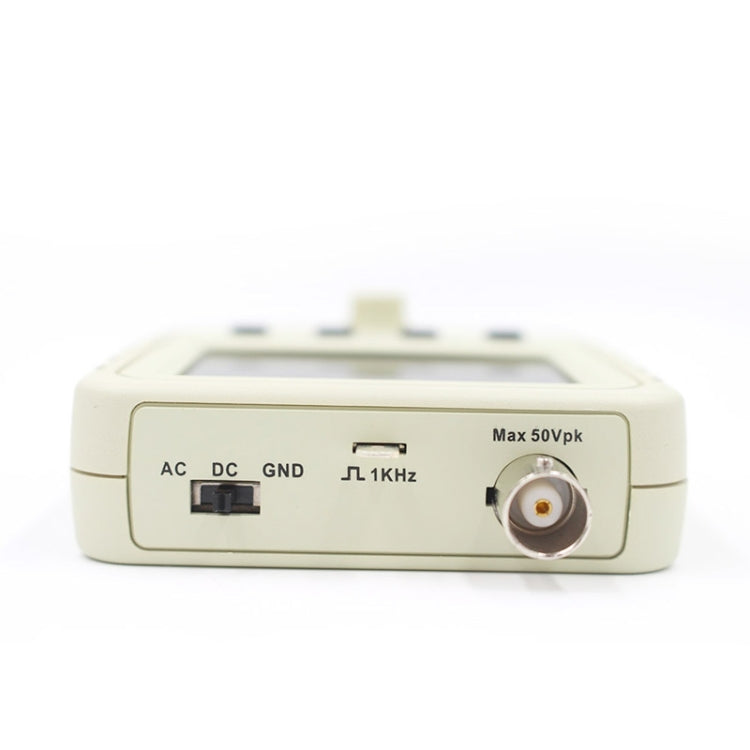

- Coupling Methods: DC / AC / GND
- Horizontal Time Base Range: 10μs / Div – 50s / Div (progressive in 1-2-5)
- Trigger Mode: Automatic, regular, and single shot
- Trigger on Rising or Falling Edge: Yes
- Adjustable Trigger Level Position: Yes
- Negative Delay: Yes
- HOLD Function: Yes
- Signal Source: 1KHz / 3.3V square wave test

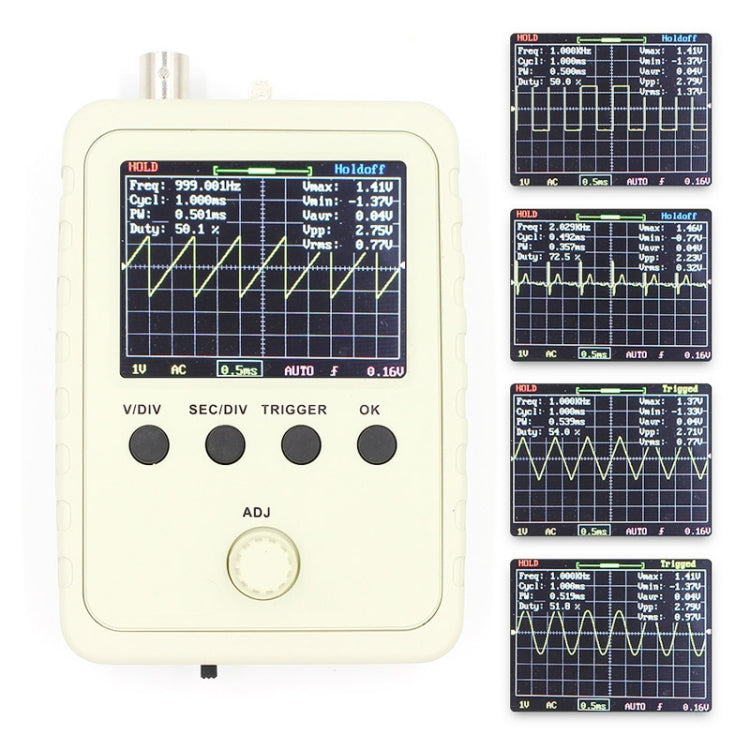

- Displayable Parameters: Frequency, period, pulse width, duty cycle, maximum value, minimum value, average value, peak-to-peak value, effective value
- Save/Recall Waveform: Yes
- Packing List: 15001K (SMD components are soldered)
Questions about features, compatibility, or warranty? Chat with our local support team!
