Description

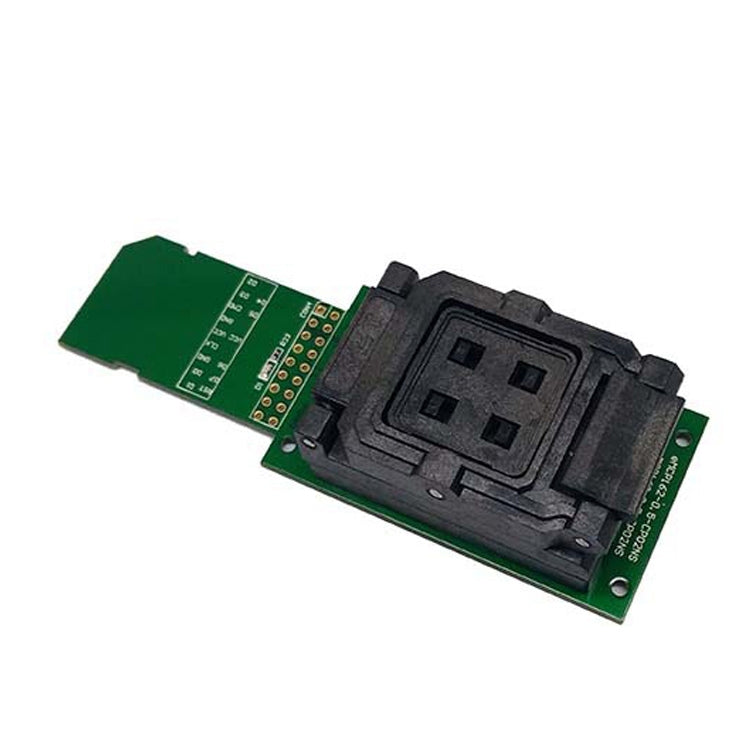

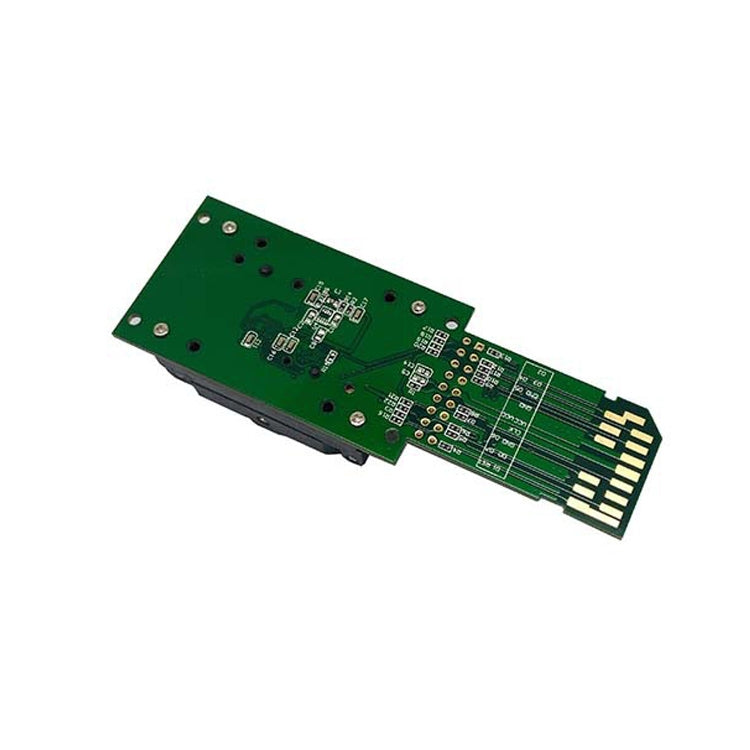

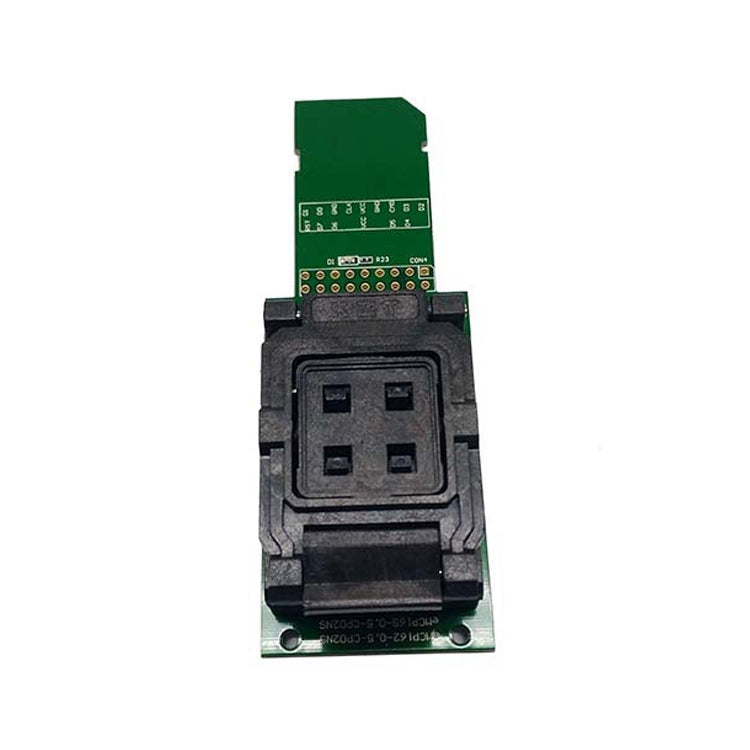

EMMC153 EMMC169 Flip Shrapnel To SD Interface Test Socket is a test block designed for integrated circuit (IC) testing. It is used in mobile phone repair to facilitate data recovery by connecting ICs to a computer via an SD interface.
- Type: Test block
- Interface type: SD
- Application: Integrated circuit (IC)
- Test method:
- Select the limit frame that matches the IC and place the IC flat in the socket according to the direction.
- Insert the SD interface into the card reader and connect to the computer, selecting the corresponding test program.
- Compatibility:

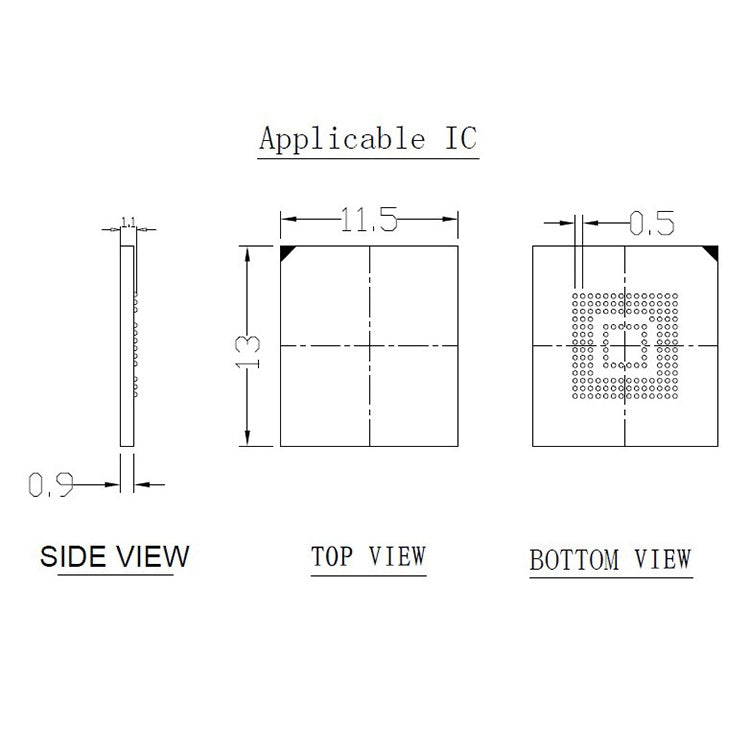

- Compatible with 169-FBGA and 153-FBGA ICs
- Materials:
- Shrapnel made of imported beryllium copper with high-precision die stamping
- Gold plating on hardened and thickened head shape for stability and durability
- Features:
- Compatible with ball and no ball test; IC limit frame can be replaced
- Overall structure of contact module reduces repeated positioning issues
- High pass rate in one test due to accurate alignment with IC PAD
- Welding structure ensures good contact and stable testing

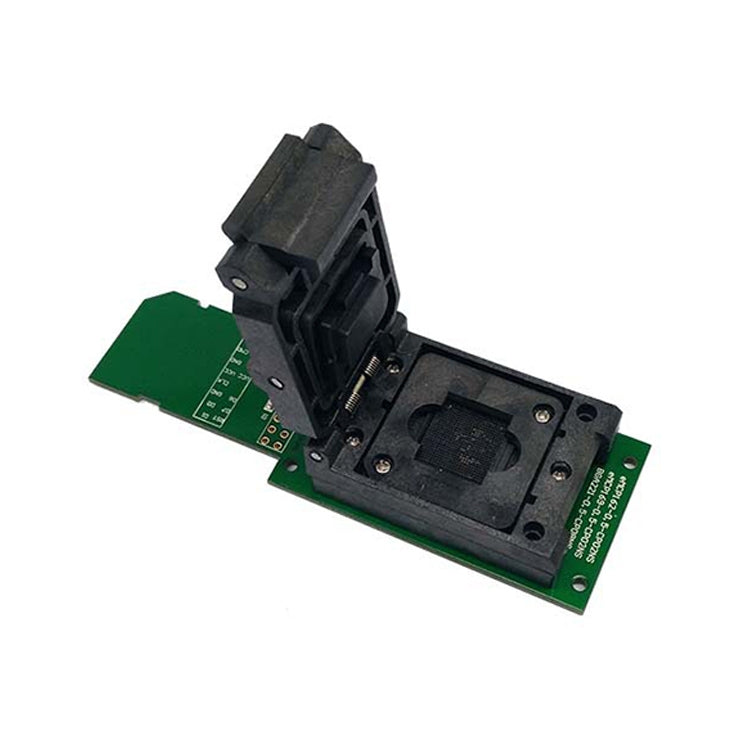

- Flip cover structure for convenient manual testing
- Mold integral molding and spring self-adaptive structure for ICs of varying thickness (0.6-2.0MM)
- Injection molding for precise positioning and higher work efficiency
- Repair and maintenance:
- Use an air gun or anti-static brush to remove impurities from the socket seat
- Clean the socket with absolute alcohol to remove impurities from the shrapnel
- Replace shrapnel if burned or broken
- Ensure USB interface is not plugged in during detection
- Avoid cleaning with organic solvents to prevent damage
- Seal with an anti-static bag when not in use for extended periods
