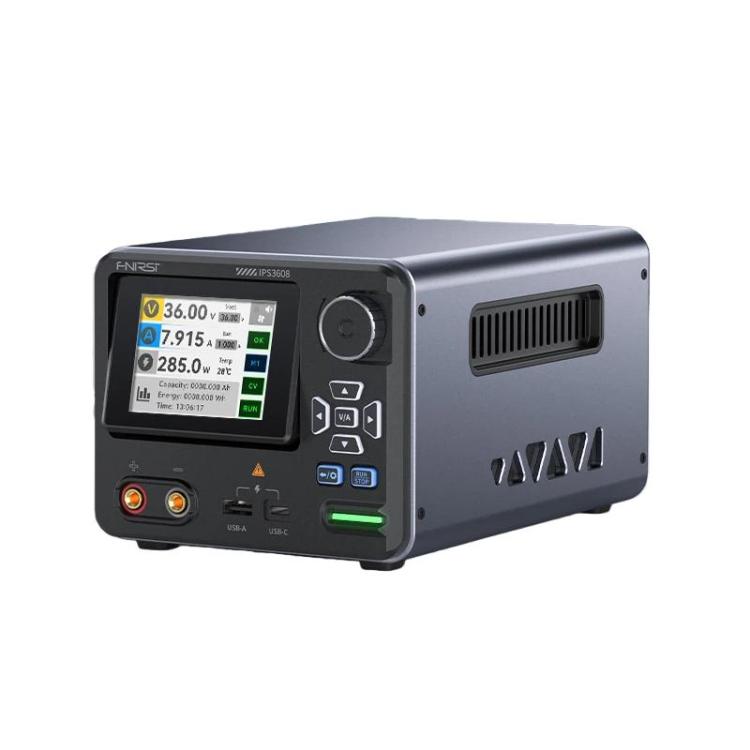

FNIRSI IPS3608 CNC DC Adjustable Regulated Power Supply High-Power Upper Computer EU Plug

• Product type: Power Supply
• Brand: FNIRSI
• Compatibility: CNC Machines
• Material: Aluminum Alloy
• Key feature: Adjustable voltage and current
• Color/Variant: Not specified
• Intended use: Everyday use
• Category: Power Supply

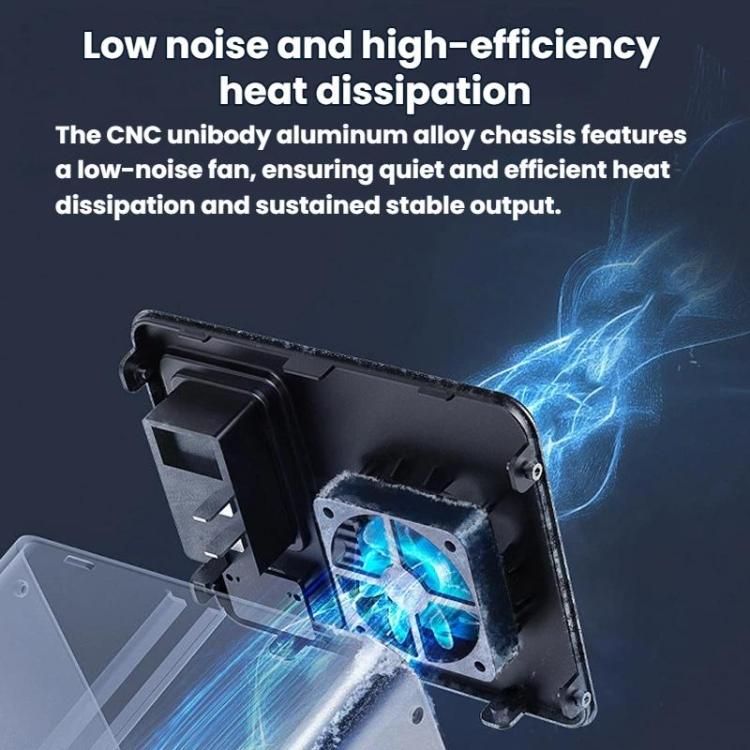

1. The CNC integrated aluminum alloy body is equipped with low-noise fans, providing quiet and efficient heat dissipation, ensuring stable and long-lasting output.

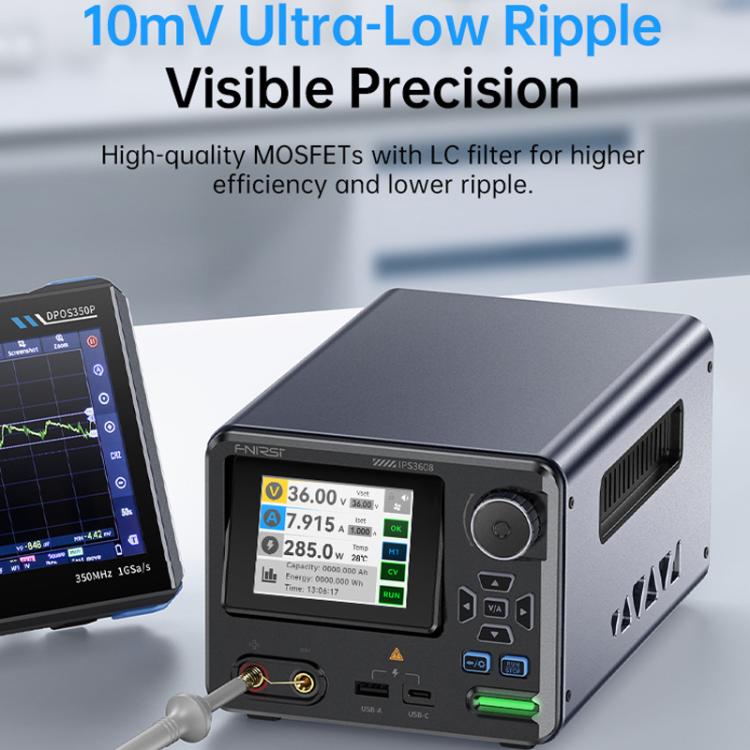

2. It uses high-quality MOS tubes and other components, with high efficiency. An LC filter circuit is added to reduce ripple.
3. Precise constant current/constant voltage control ensures uniform zinc deposition and reliable experimental results.
4. Professional views can be switched at will, with flexible adaptation of light and dark themes and free adjustment in multiple angles.
5. It has eight layers of protection, including overvoltage protection, overcurrent protection, overpower protection, overheating protection, undervoltage protection, short circuit protection, input reverse connection protection, and current protection.
6. Quick charging and maintenance are available. USB-A and USB-C support PD/QC/FCP/SCP/AFC, providing power for your phone and workflow.
7. PC software control with programmable output.
8. 6 sets of intelligent presets for efficient work and precise control. Up to 6 sets of voltage, current and protection limits can be pre-configured. One-click start/stop is available, and quick and efficient switching is supported.
9. It can charge the battery and provide current and voltage control for sensitive battery cells.
10. 2.8 inch TFT screen, clear, vivid colors, real-time display.
11. Brightness control, easily adjustable to adapt to any lighting conditions.
12. Rear power switch, safer to use and prevents accidental touching.
13. Intelligent cooling fan, automatic cooling, system protection.
14. Packaging list: main unit, power cord, crocodile clip cable, packaging box, instruction manual, data cable.
Parameters:
1. Screen: 2.8 inch color screen
2. Languages: Chinese, English
3. Voltage range: 100-240VAC (50/60Hz)
4. Output voltage: DC 0-36V
5. Output current: 0-8A
6. Output power: 0-285W
7. Voltage setting resolution: 0.01V
8. Current setting resolution: 0.001A
9. Operating environment: -10℃-40℃, 0%-75%RH
