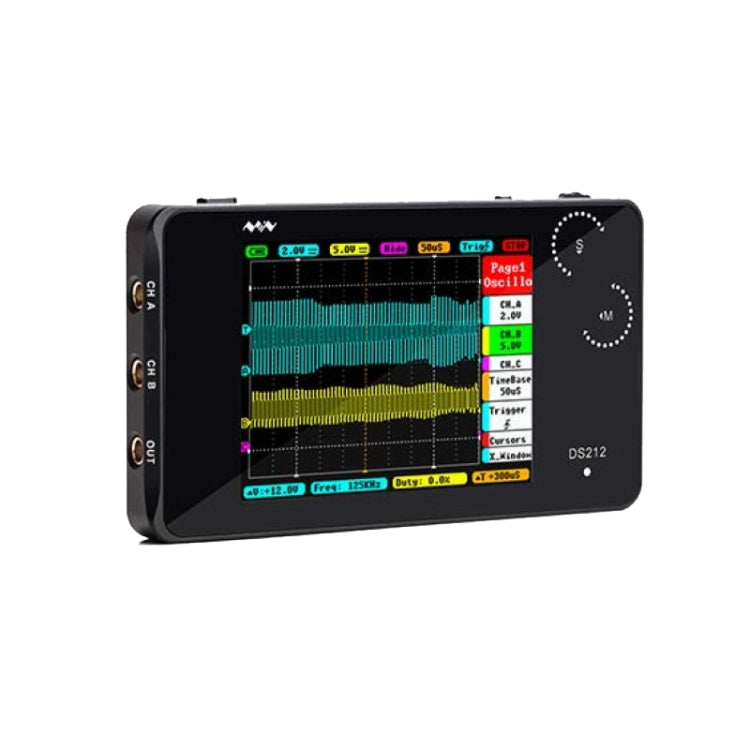

MINIWARE Dual Channel Mini Portable Handheld Digital Storage Oscilloscope, Model: DS212
MINIWARE Dual Channel Mini Portable Handheld Digital Storage Oscilloscope, Model: DS212
Spread the cost
No lump sum. No stress. Pick a repayment term that works for your budget — and keep your cash flow intact.
- R738.18/mo 3 months
- R373.27/mo 6 months
- R197.0/mo 12 months
- From R738.18/month over 3 months, or as low as R197.0/month over 12. Total repayable over 12 months: R2364.0. Interest at 20.75% p.a. applies.
- Quick online application — most people get a decision within minutes. Your first payment only kicks in 30 days after you buy.
- Mobicred is a registered South African credit provider (NCR reg. NCRCP7852). Available to SA residents aged 18+ with a valid ID and bank account.
At checkout, simply select Mobicred as your payment method.
Continue to checkoutDon't have Mobicred yet? Apply free — takes about 2 minutes →
Mobicred is a revolving credit facility provided by Retail Capital (Pty) Ltd, a registered credit provider (NCR reg. NCRCP7852) in terms of the National Credit Act 34 of 2005. Credit is subject to approval and an affordability assessment. Interest rate: 20.75% p.a. compounded monthly (1.7292%/month). Available to South African residents aged 18 and older. Full terms & conditions apply.
Import Taxes & Duties Excluded
6-13 business days
In Stock CHN
Processing time: 1-3 days
Couldn't load pickup availability
Description

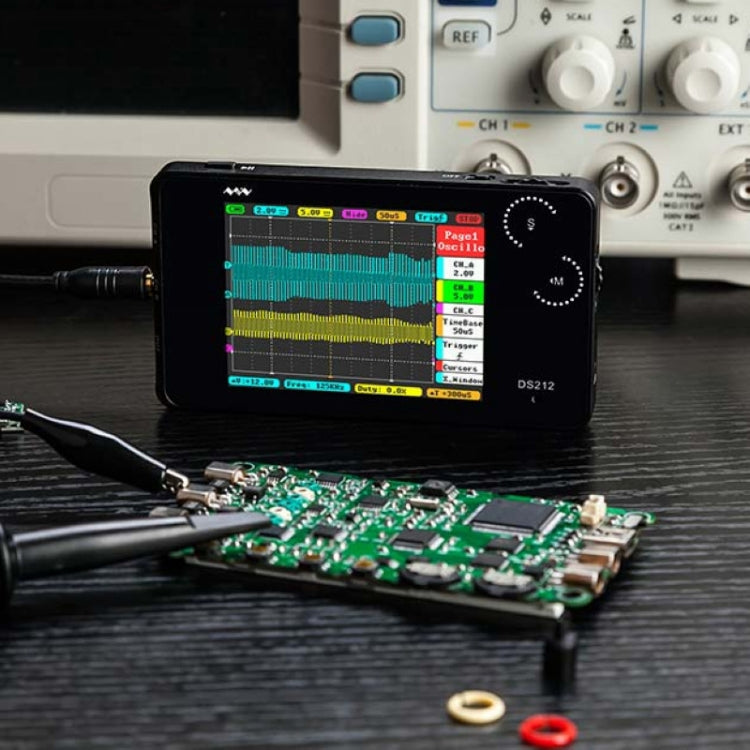

MINIWARE Dual Channel Mini Portable Handheld Digital Storage Oscilloscope, Model: DS212 is a test equipment tool designed for waveform measurement. It is suitable for everyday use in various electronic testing applications.
- Product Type: Other Tester Tool
- Model: DS212

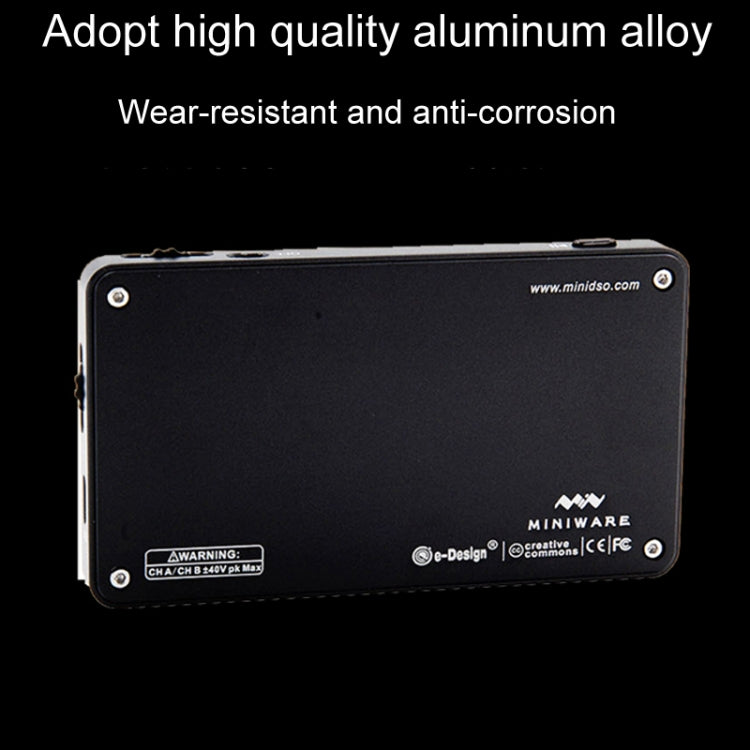

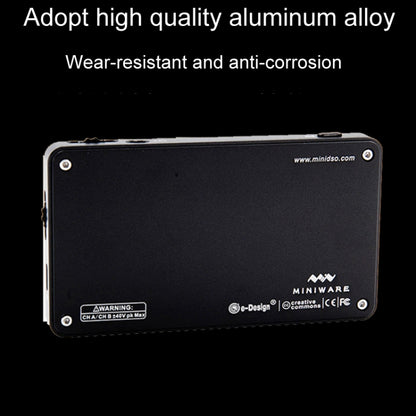

- Material: Aluminum alloy
- Compatibility: DS212
- Key Feature: Portable design
- Intended Use: Everyday use
- Category: Test Equipment
- MCU: STM32F303VE
- ADC: MCU internal ADC
- Number of Channels: 2 analog channels
- Analog Bandwidth: 1MHz
- Sampling Rate: up to 10MSa/s
- Memory Depth: up to 8K
- Horizontal Scanning Speed: 1uS-2S
- Vertical Sensitivity: 20mv-10V
- Input Impedance: greater than 500 kOhm
- Coupling Method: DC/AC
- Trigger Type: rising edge, falling edge
- Automatic Adjustment Mode: AUTO-FIT
- Signal Output: square wave, sine wave, triangle wave, sawtooth wave
- Trigger Mode: auto/normal/single/slow
- Number of Apps: 21
- Storage: 8MB built-in U disk

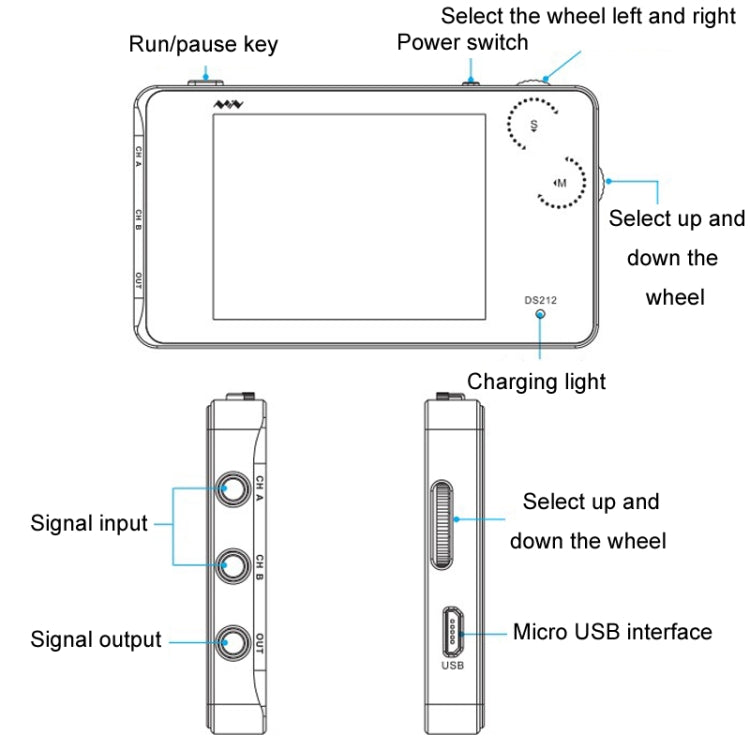

- Operation: key, encoder
- USB Interface: Micro-USB

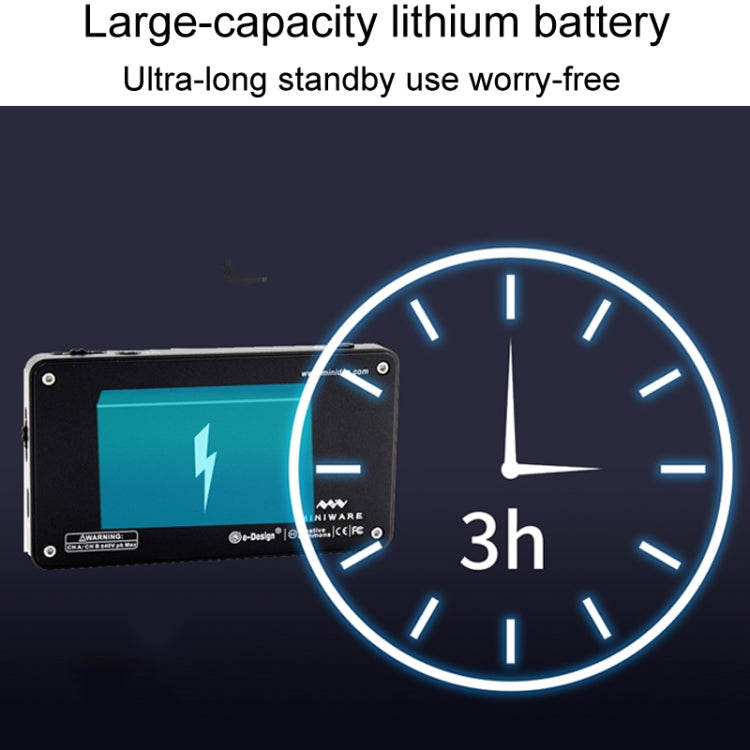

- Battery Capacity: 500mAh
- Standby Time: 2-3 hours
- Screen Size: 2.8 inch
- Screen Resolution: 320 x 240

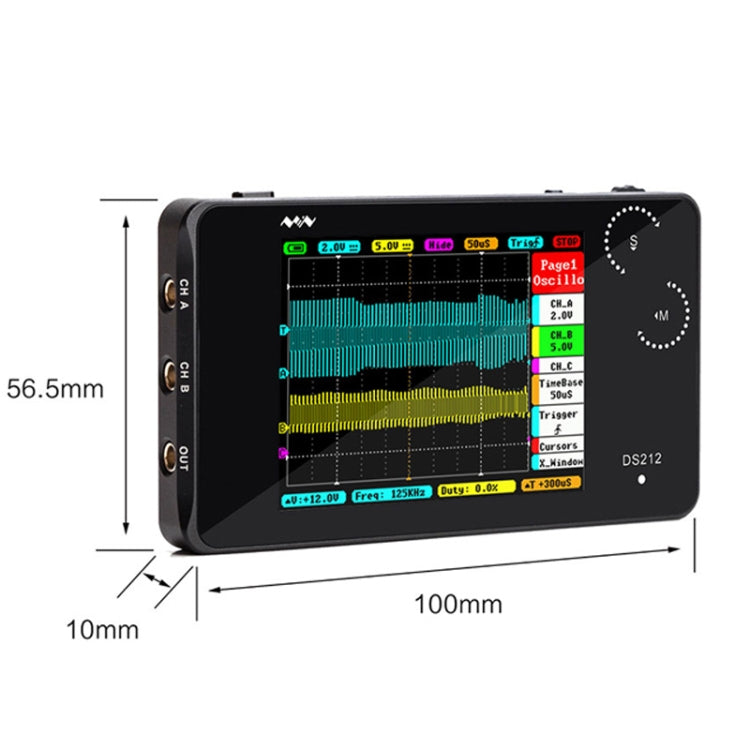

- Main Unit Size: 100 x 56.5 x 10.7mm
- Weight: 88g

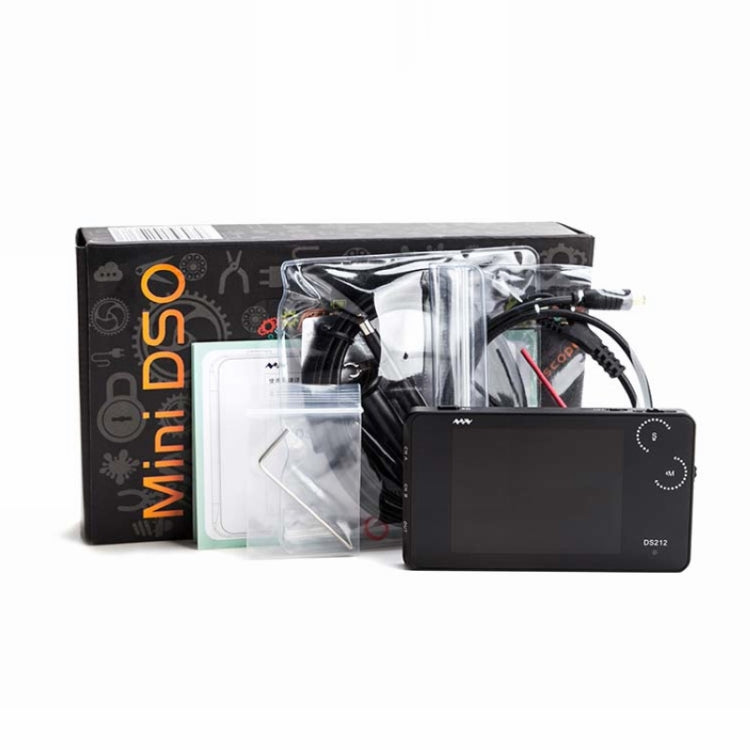

- Packing List: Main unit x 1, Split probe x 1, Hook x 1, L-shaped hexagonal screwdriver x 1, Instructions for use x 1
