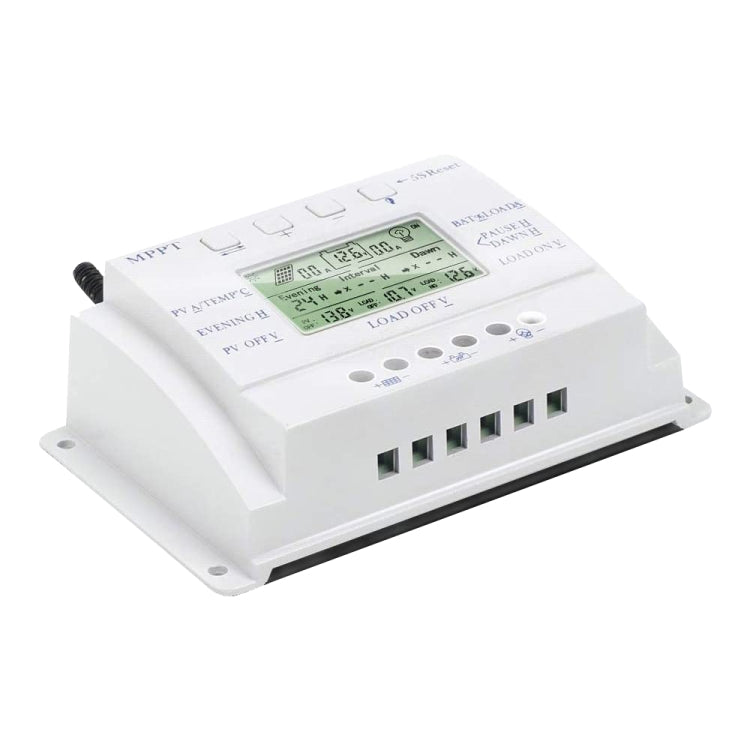

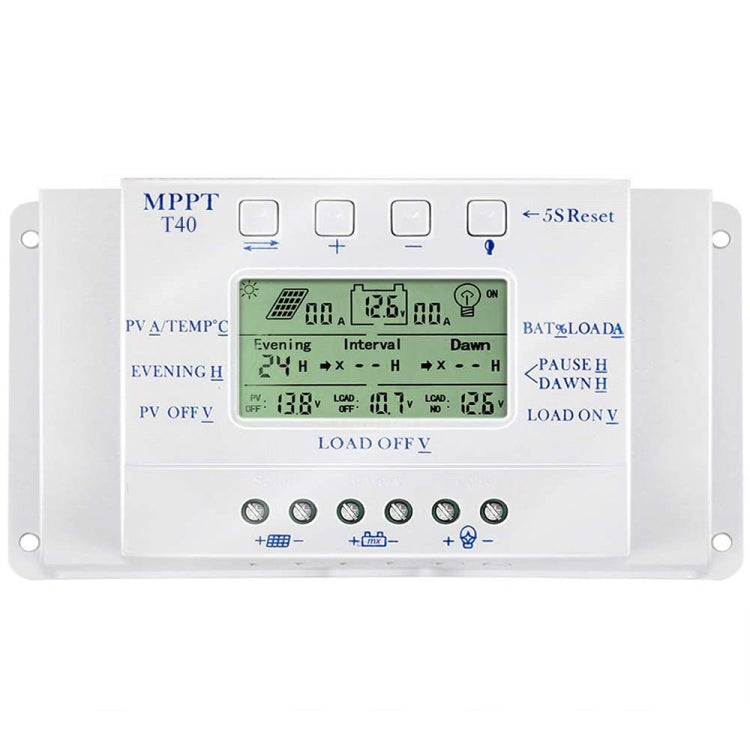

MPPT T40-40A Solar PWM Controller

• Product type: Others
• Compatibility: Solar panels
• Material: N/A
• Key feature: Intelligent PWM charging
• Color/Variant: N/A
• Intended use: Energy management
• Category: Consumer Electronics

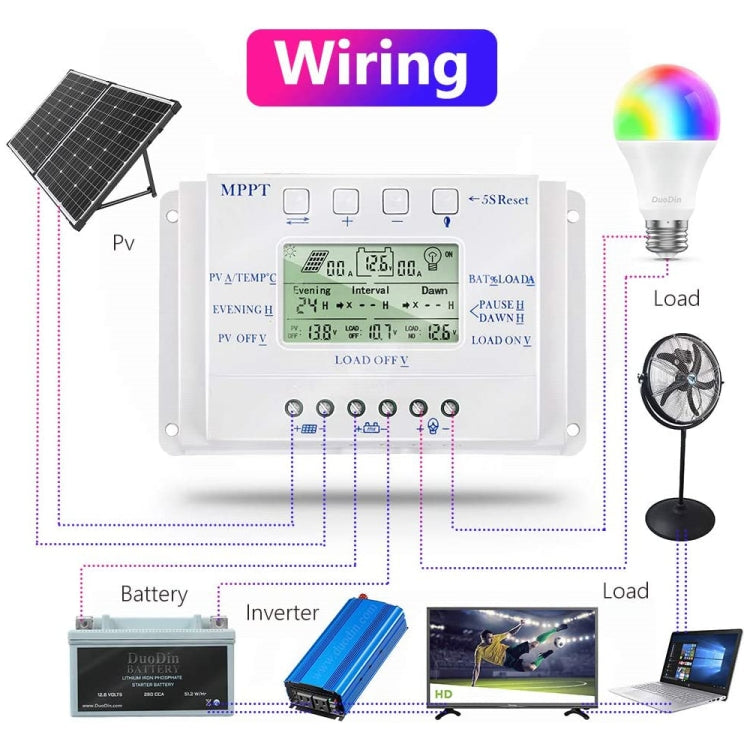

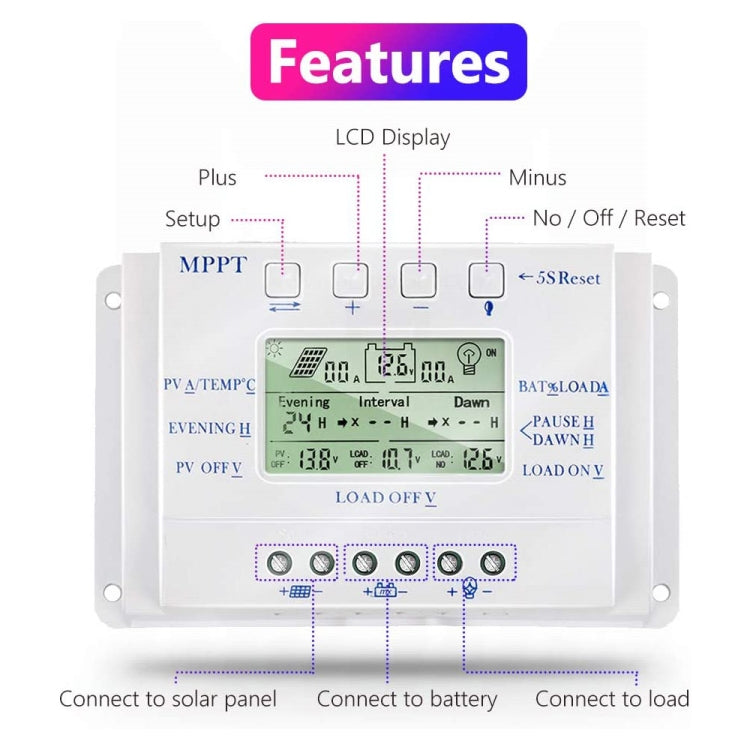

Features:1. The characteristic of this controller is that the working voltage of the solar panel can be tracked to the maximum current emitted by the solar panel by intelligently adjusting the solar panel, so that the solar panel always works at the maximum power point of the V-A characteristic curve. Compared with ordinary solar controllers, the utilization of solar panel power generation has increased by 10-30%2. Vivid LCD graphic symbols, concise button mode3. Intelligent PWM charging method with automatic temperature compensation4. Adjustable slave discharge control parameters, settable load working mode5. Battery reverse discharge, undervoltage, reverse connection protection and other protection functionsparameter:1. Net weight: 0.43 kg2. Size: 16.5x9.5x6 cm3. Rated charging current: 40A4. Floating charge voltage: 13.8V / 27.6V5. Undervoltage protection: 10.6V / 21.2V6. Over-discharge recovery voltage: 12.6V/25.2V7. Working temperature: -10-60 degrees Celsius8. Storage temperature: -30 -70 degrees Celsius9. Wiring specification: less than or equal to No. 6 AWG (12 square millimeters)
