SINOTIMER SDM004 Din Rail AC Voltage Current Time Power Electricity Multi-Function Detection Meter

• Product type: Current & Voltage Tester
• Brand: SINOTIMER
• Compatibility: AC systems
• Material: Durable plastic
• Key feature: Multi-function detection
• Color/Variant: N/A
• Intended use: Everyday use
• Category: Test Equipment

1. Measurement accuracy: 1+/-2 percent of the word

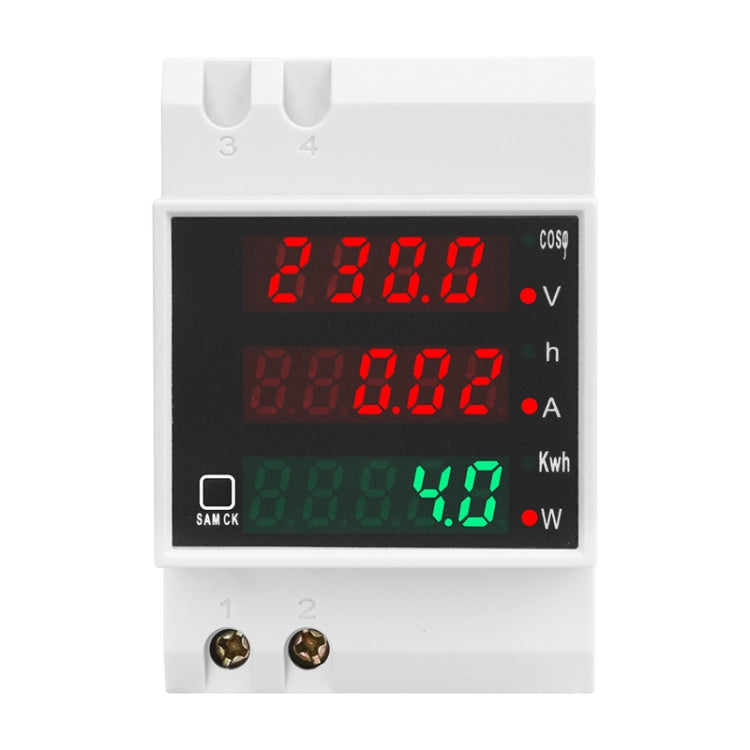

2. Display: voltage display 4 red 0.31-inch LED digital tube, current and time cumulative display using 5-digit, red 0.31-inch LED digital tube active power, electrical energy (degrees) display using 5-bit, green 0.31-inch LED digital tube
3. Measuring range:- Voltage: AC80-300V- Current: AC0-100A, measuring current less than 100A current display resolution of 0.01A, measuring current greater than 100A current display resolution of 0.1A, range automatic conversion- Active power: 0-30000W- Electricity power: 0.000-99999kwh- Time accumulation: 0.00-999.59h- Power factor: 1.000-0.000
4. Measuring speed: 2 times/s
5. Installation width: equal to the instrument occupies 3P air switch position

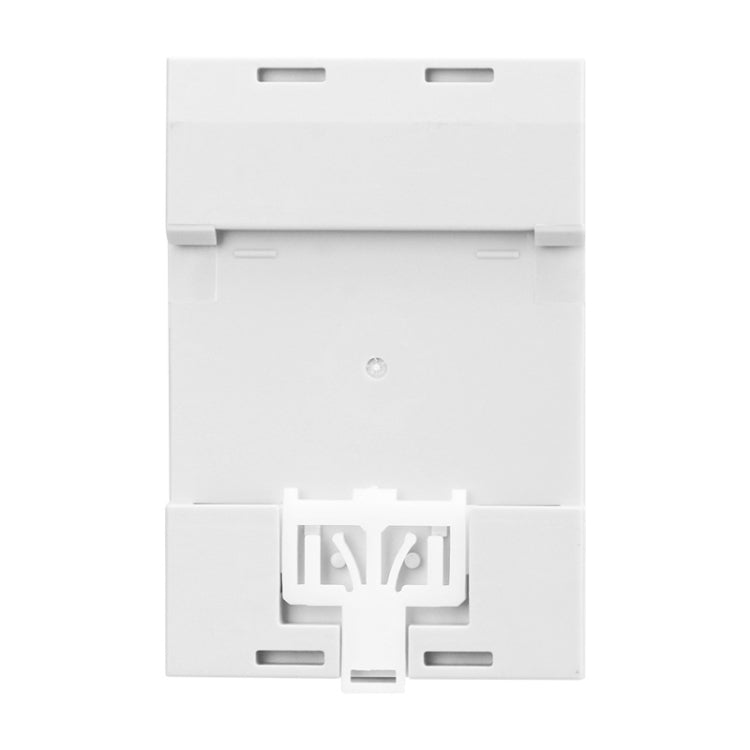

6. Installation mode: rail type (shipment without rail)

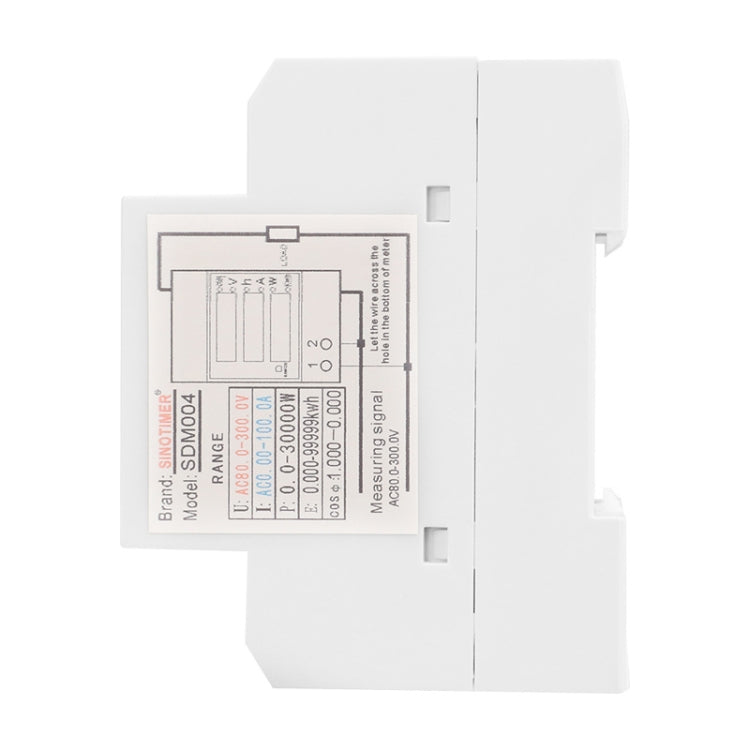

7. Built-in transformer: the measurement circuit of the wire through the right side of the meter hole
8. Function: display the measured AC voltage, AC current, power factor, active power, electrical energy and timing time of electrical energy on the meter at the same time
9. Size: 54 x 80 x 64mm
