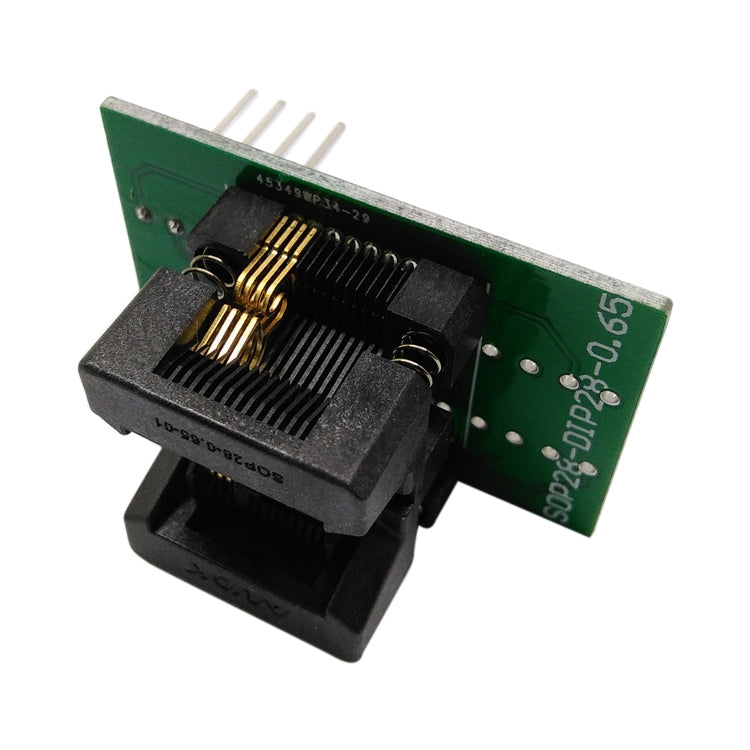

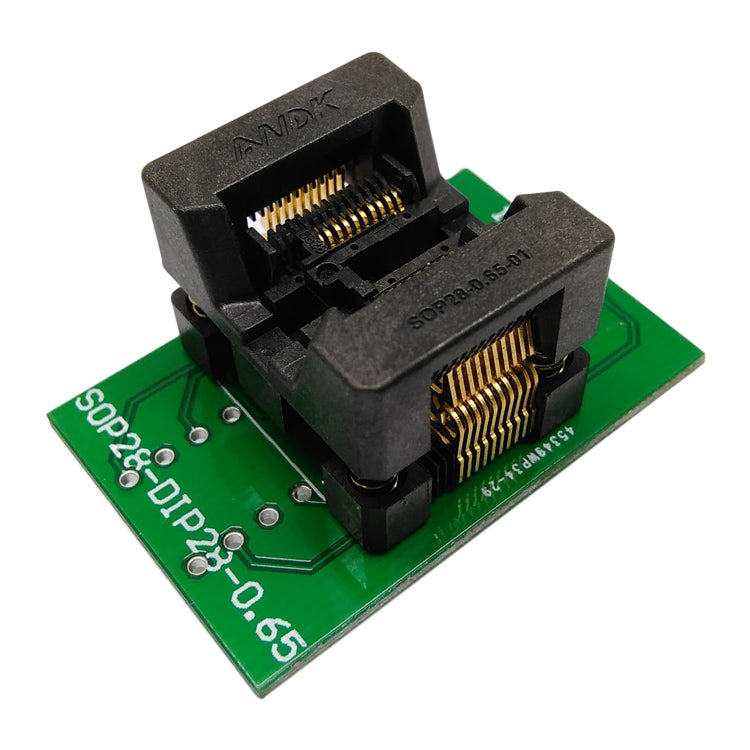

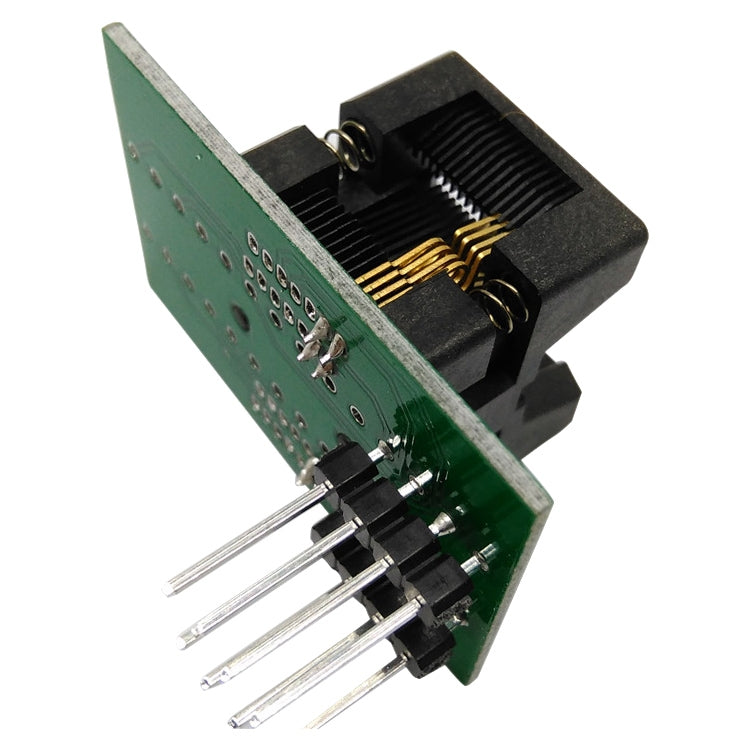

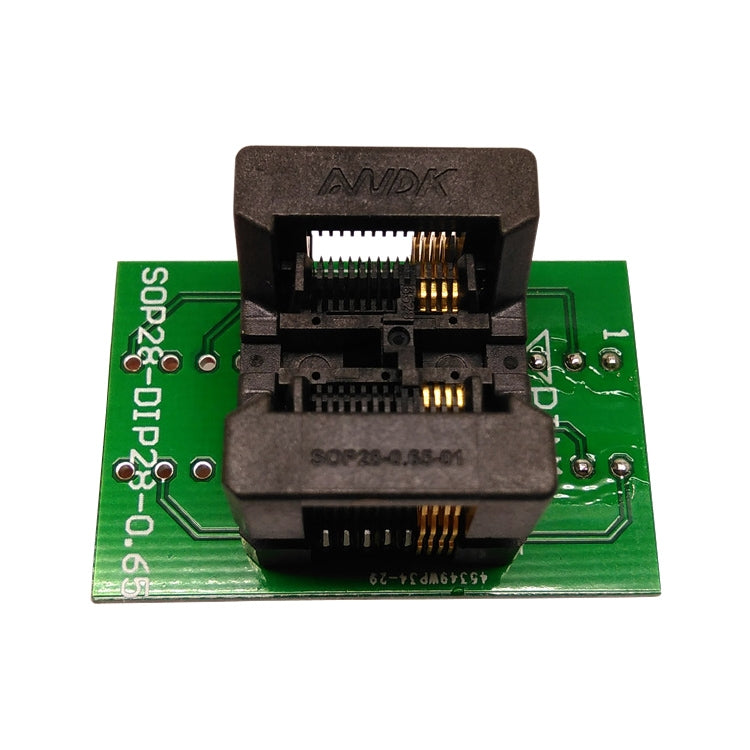

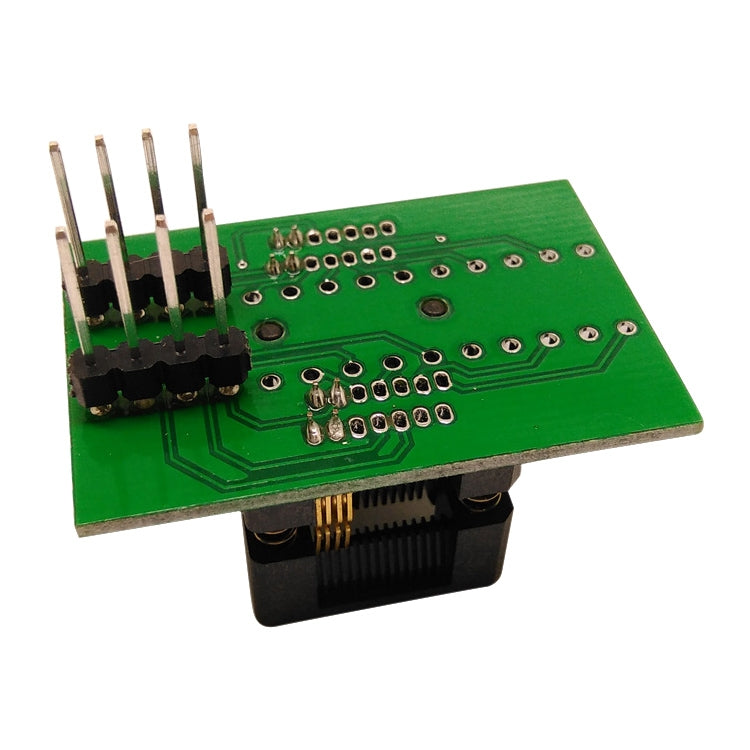

SSOP8 OTS-28-0.65-01 Chip Adapter Socket

Name: SSOP8 OTS-28-0.65-01 Chip Adapter Socket
Brand: PMC Jewellery
SKU: TBD05541240
Price: 309.00 ZAR
Availability: InStock

R 309.00

Sale Sold out

FREE DELIVERY on all orders.

🔥 Buy 2 items, get 25% off 3rd item 🔥 Today only!

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

Features:
1. Using double contact technology, the contact is more stable;
2. The seat shell is made of special engineering plastic, which has high strength and long life;
3. The shrapnel adopts imported beryllium copper material, which has low impedance and good elasticity;
4. Thick gold-plated layer, thick electroplating of contacts, ultra-low contact impedance and high reliability;

Product performance:
1. Material: insulator PEI, PPS; shrapnel, beryllium copper Be Cu Gold plating (30u), Over Nickel plating (50u)
2. Insulation resistance: 1000mohm, At DC 500V
3. Withstand voltage: 700AC/1Minute
4. Contact impedance: less than 25mohm
5. PIN foot elasticity: 55g/PIN(Normal)
6. Working temperature: minus 65-155 degrees Celsius
7. Specifications and dimensions: pin spacing: 0.65 mm, pin position: 8, adaptable chip body width: 4.4 mm
