Description
The TTGO T-SIM7600E-H is a development board module designed for solar charging applications. It is suitable for projects requiring wireless communication and power management.
- Product Type: Module
- Compatibility: ESP32
- Main Chip: ESP32
- Module: ESP32-WROVER-B, SIM7600E-H

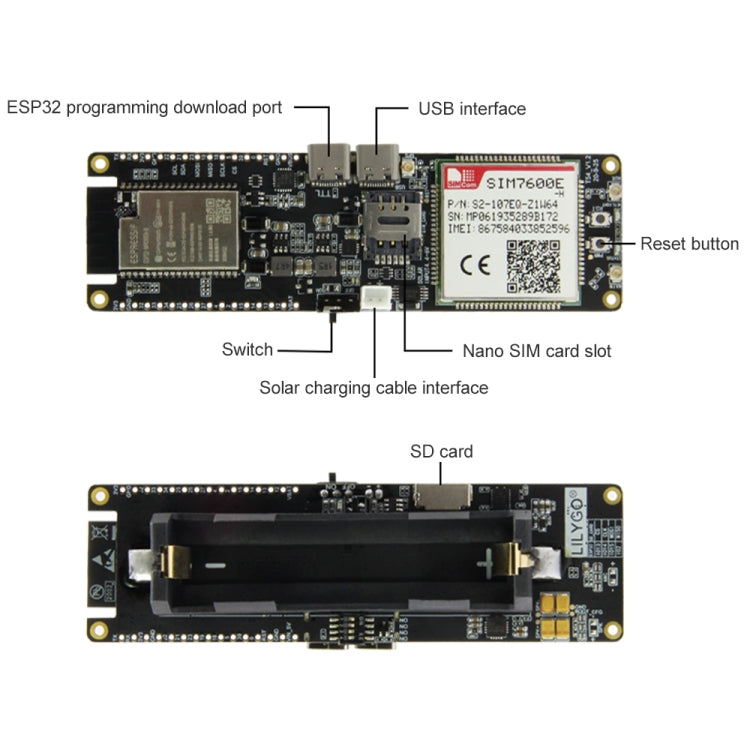

- Interface: USB, SD Card, Solar Input
- Flash Memory: 4M Flash / 8M PSRAM
- Buttons: Reset, Power switch
- USB to TTL: CP2104
- Car Clock: 40MHz
- SIM Card Size: Nano SIM Card

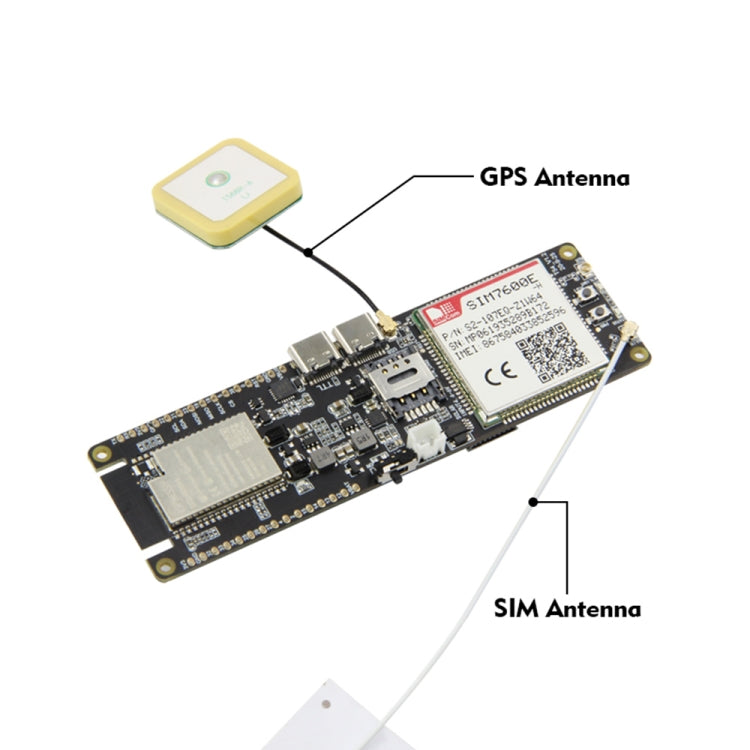

- SIM Antenna: Included
- GPS Antenna: Included
- Operating Temperature Range: -40 to 85 degrees Celsius

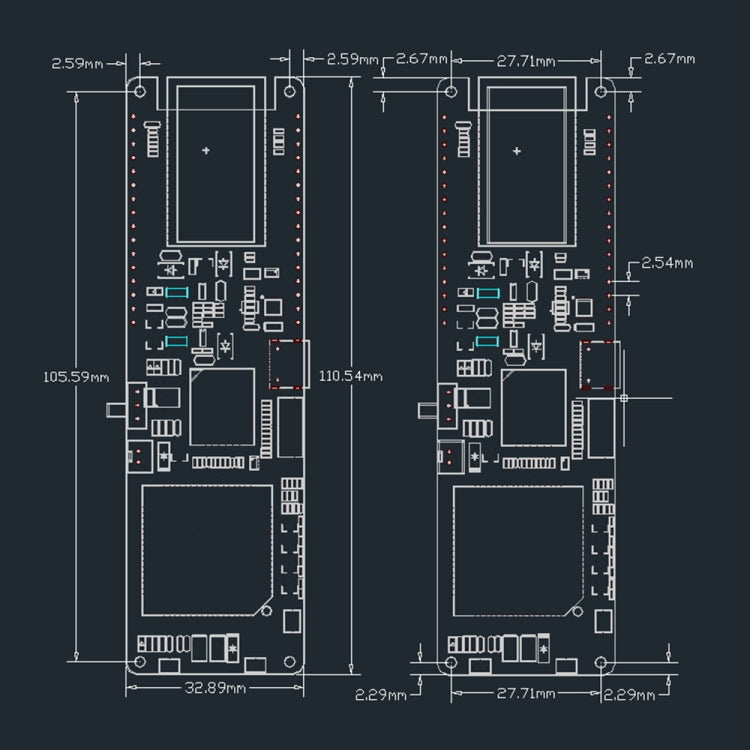

- Product Size: 111mm x 37mm x 20mm
- Product Weight: 50g
- Working Voltage: 5V input

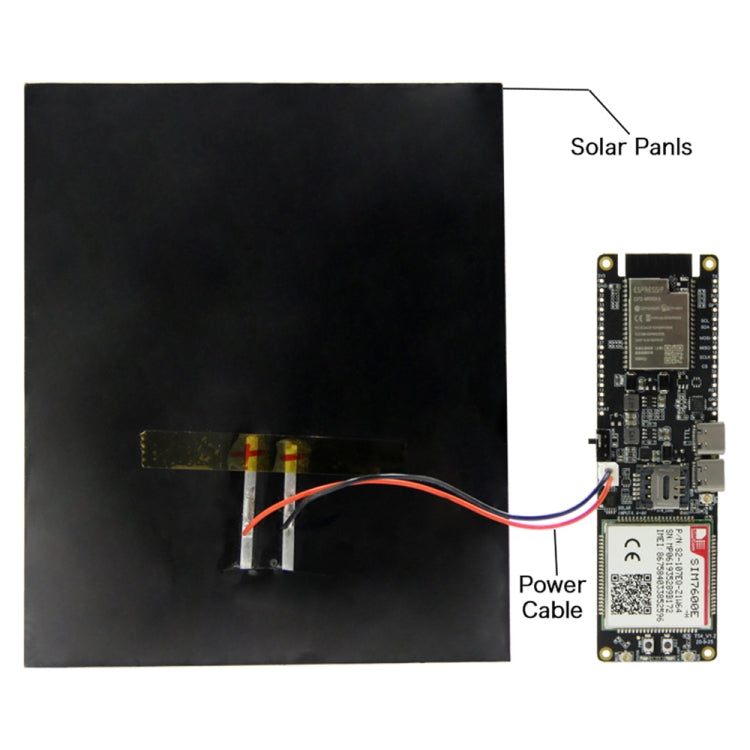

- Solar Input Voltage Range: 4.4V - 6V
- Working Current: Approximately 200mA
- Charging Current: 780mA
- Battery Model: 18650
- Battery Holder Model: 18650 battery holder
- JST Connector: 2-pin 2mm
- USB: Type-C 3.0
- Wi-Fi Standard: FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC
- Wi-Fi Protocol: 802.11 b/g/n (802.11n speed up to 150Mbps)
- Wi-Fi Frequency Range: 2.4GHz - 2.5GHz (2400M - 2483.5M)
- Wi-Fi Transmit Power: 22dBm
- Wi-Fi Communication Distance: 300m
- Bluetooth Protocol: v4.2 BR/EDR and BLE standard
- Bluetooth Radio Frequency Sensitivity: -97dBm
- Bluetooth Emitter Class: Class-1, Class-2 & Class-3
- Audio Frequency: CVSD & SBC
- Wi-Fi Mode: Station/SoftAP/SoftAP+Station/P2P
- Security Mechanism: WPA/WPA2/WPA2-Enterprise/WPS
- Encryption Type: AES/RSA/ECC/SHA
- Firmware Upgrade: UART download/OTA
- Software Development: Supports cloud server development/SDK for user firmware development
- Networking Protocol: IPV4, IPV6, SSL, TCP/UDP/HTTP/FTP/MQTT
- User Configuration: AT + Instruction set, cloud server, Android/iOS APP
- Operating System: FreeRTOS
- Battery Protection: Overcharge and over-discharge protection
- GPS Power Control: Reduces power consumption to 300uA in sleep mode
- Charging IC: Solar charging IC
