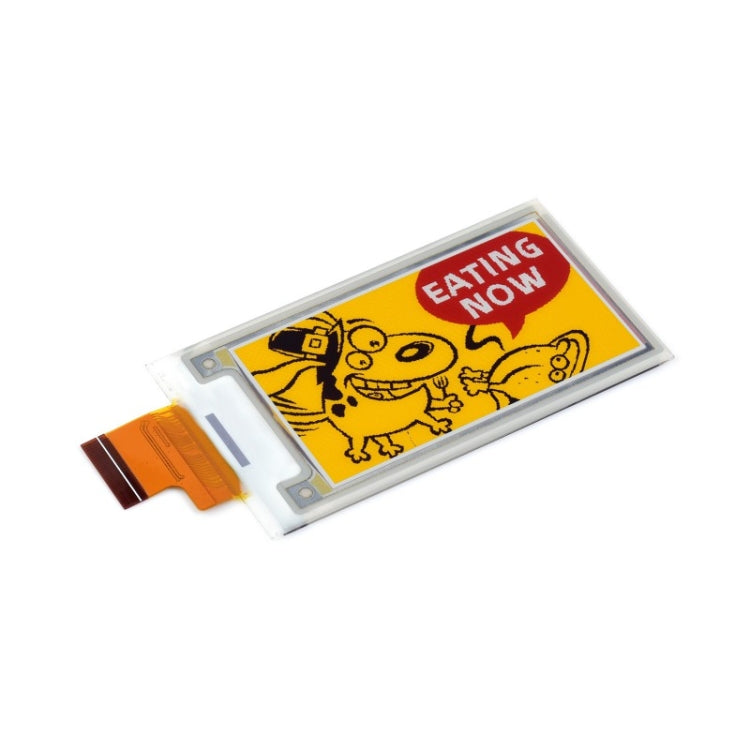

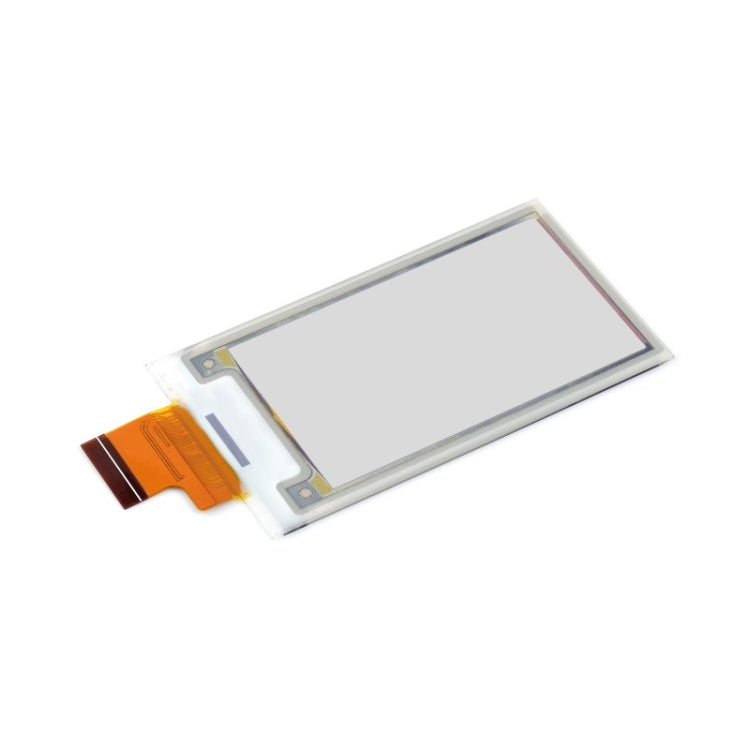

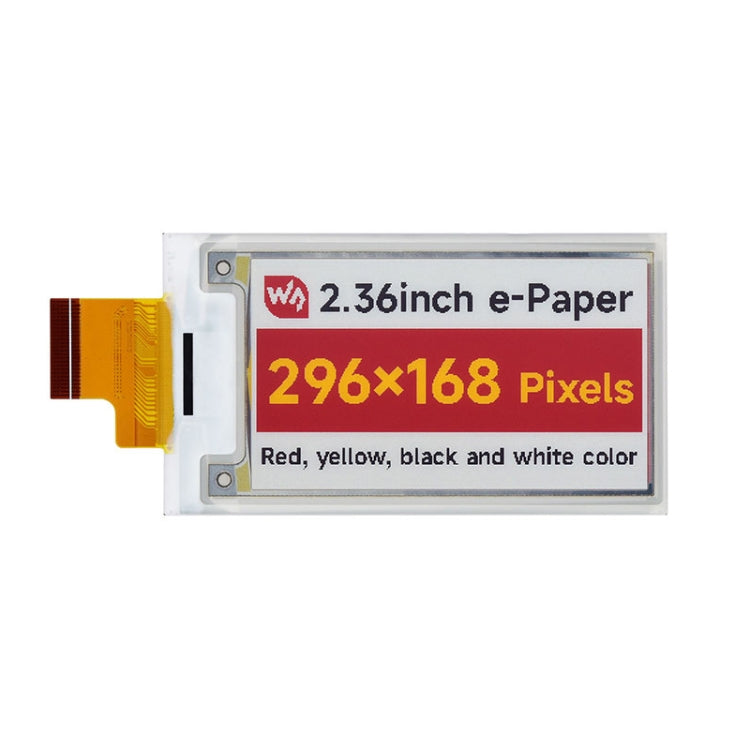

Waveshare 2.36 inch 296 x 168 Red Yellow Black White E-Paper (G) Raw Display Panel
Waveshare 2.36 inch 296 x 168 Red Yellow Black White E-Paper (G) Raw Display Panel
Spread the cost
No lump sum. No stress. Pick a repayment term that works for your budget — and keep your cash flow intact.
- R124.47/mo 3 months
- R62.94/mo 6 months
- R33.22/mo 12 months
- From R124.47/month over 3 months, or as low as R33.22/month over 12. Total repayable over 12 months: R398.64. Interest at 20.75% p.a. applies.
- Quick online application — most people get a decision within minutes. Your first payment only kicks in 30 days after you buy.
- Mobicred is a registered South African credit provider (NCR reg. NCRCP7852). Available to SA residents aged 18+ with a valid ID and bank account.
At checkout, simply select Mobicred as your payment method.
Continue to checkoutDon't have Mobicred yet? Apply free — takes about 2 minutes →
Mobicred is a revolving credit facility provided by Retail Capital (Pty) Ltd, a registered credit provider (NCR reg. NCRCP7852) in terms of the National Credit Act 34 of 2005. Credit is subject to approval and an affordability assessment. Interest rate: 20.75% p.a. compounded monthly (1.7292%/month). Available to South African residents aged 18 and older. Full terms & conditions apply.
Import Taxes & Duties Included
6-13 business days
In Stock CHN
Processing time: 1-3 days
Couldn't load pickup availability
Description
The Waveshare 2.36 inch E-Paper display panel is designed for low power consumption applications. It is suitable for use in projects requiring a display that retains content without power, such as electronic shelf labels or low-power IoT devices.

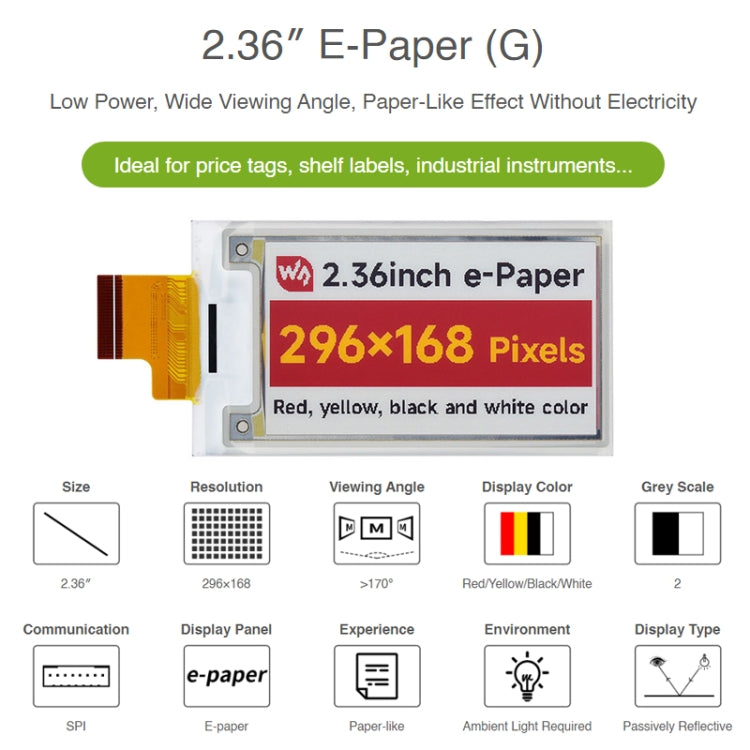

- Product Type: E-Paper Display Panel
- Compatibility: Raspberry Pi, Arduino, STM32
- Operating Voltage: 3.3V
- Interface: 3-wire SPI, 4-wire SPI

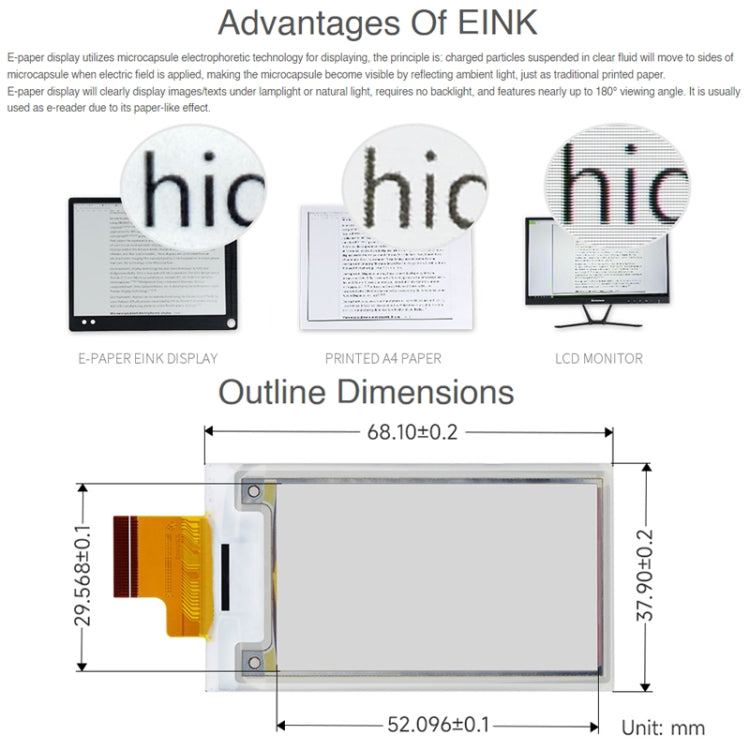

- Outline Dimension: 68.1 x 37.9 x 0.85 mm
- Display Size: 52.096 x 29.568 mm
- Dot Pitch: 0.176 x 0.176 mm
- Resolution: 296 x 168 pixels
- Display Color: Red, Yellow, Black, White
- Grey Level: 2
- Full Refresh Time: 12 seconds
- Refresh Power: Less than 57 mW (typical)
- Standby Power: Less than 0.01 µA
- Viewing Angle: Greater than 170 degrees
- Key Feature: Ultra low power consumption
- Intended Use: Everyday use
- Development Resources: Includes driver board schematic and examples for Raspberry Pi, Arduino, STM32
