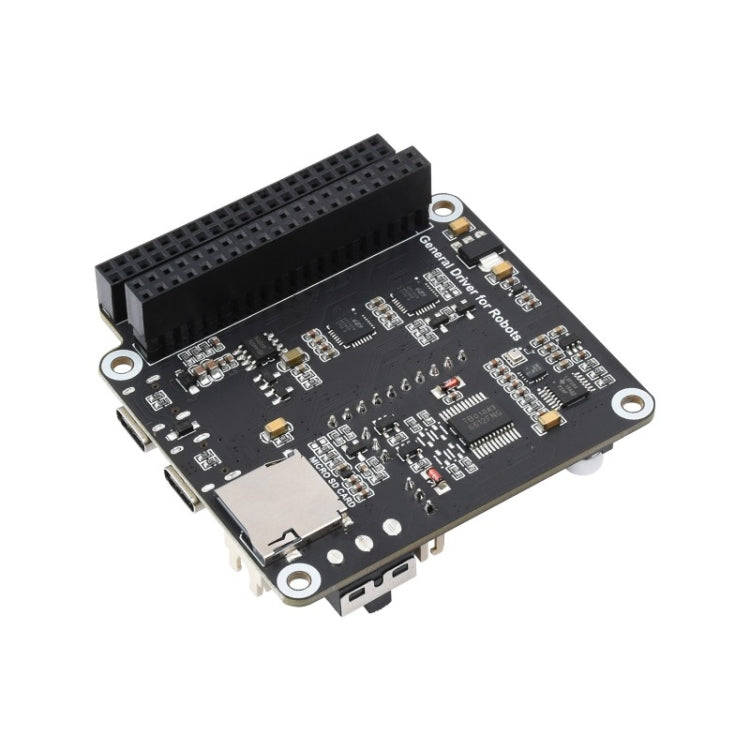

Waveshare 23730 ESP32 Multi-Functional General Driver Board For Robots, Supports WIFI/Bluetooth/ESP-NOW

• Product type: Modules Expansions Accessories
• Brand: Waveshare
• Compatibility: ESP32
• Material: Not specified
• Key feature: Supports WIFI/Bluetooth/ESP-NOW
• Color/Variant: Not specified
• Intended use: Robotics applications
• Category: Electronics Module

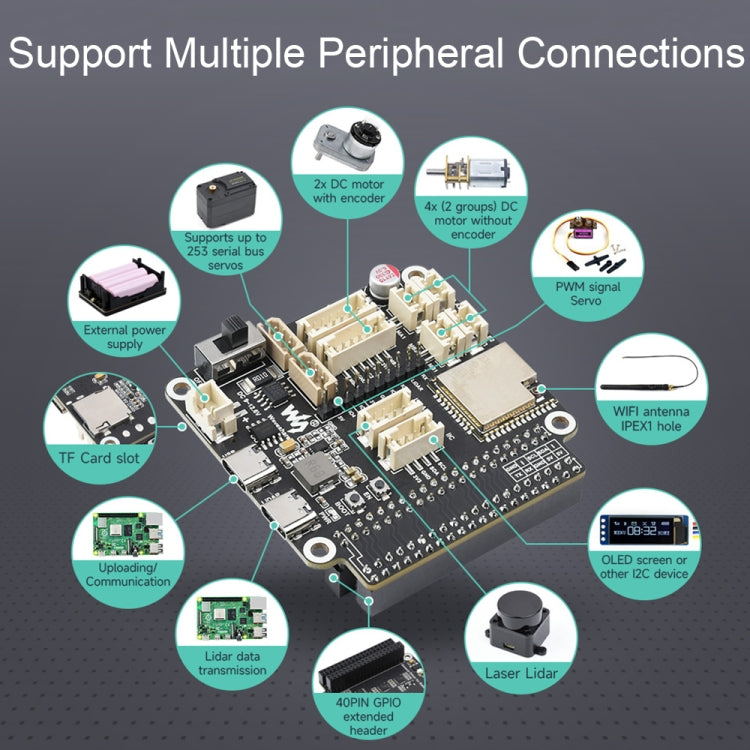

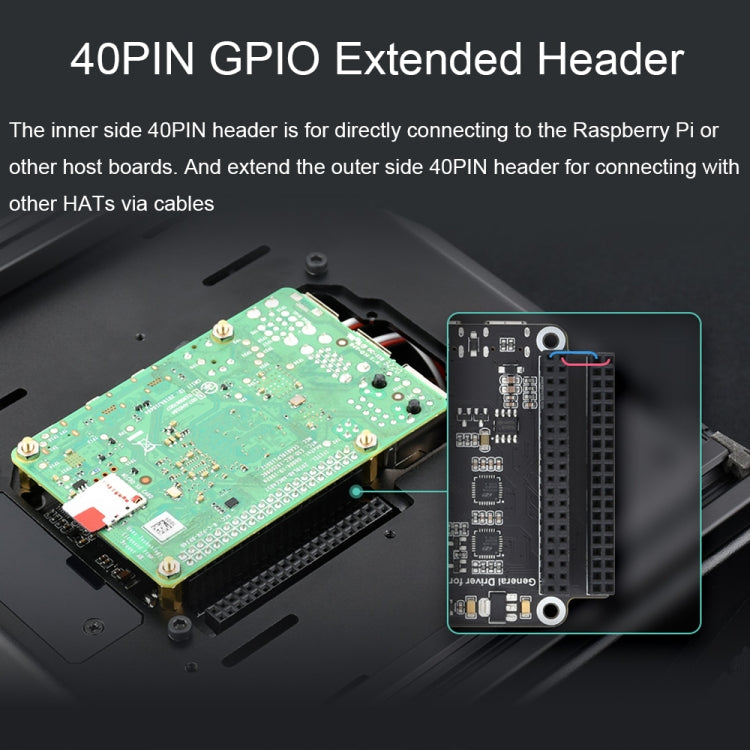

Features:1. Based on the ESP32-WROOM-32 module, it supports WIFI, Bluetooth, ESP-NOW and other wireless communications2. Onboard motor control interface for 2x DC motors with encoder or 4x DC motors without encoder (2 groups)3. Onboard serial bus steering gear control interface, which can control up to 253 ST3215 serial bus steering gears and obtain steering gear feedback4. Onboard 9-axis IMU, obtain attitude and heading information at any time5. Support 7-13V power input, can be directly powered by 2S or 3S lithium battery module6. Automatic download circuit, easy to upload program7. Support input voltage/current monitoring8. Onboard TF card slot9. Onboard lidar interface and integrated UART to USB function10. I2C interface for connecting peripherals such as OLED, IMU and other I2C devices11. Adapt multi-function expansion connectors for additional functions, such as controlling servos or relays12. Onboard 40PIN GPIO header, used to connect to the host (Raspberry Pi/Jetson Nano, etc.) and supply power to it, communicate through serial port or I2C13. Provide open source demos and detailed tutorials for novices, easy to get started

Packing list:-Robot Universal Drive x 1-Screw Pack x 1
