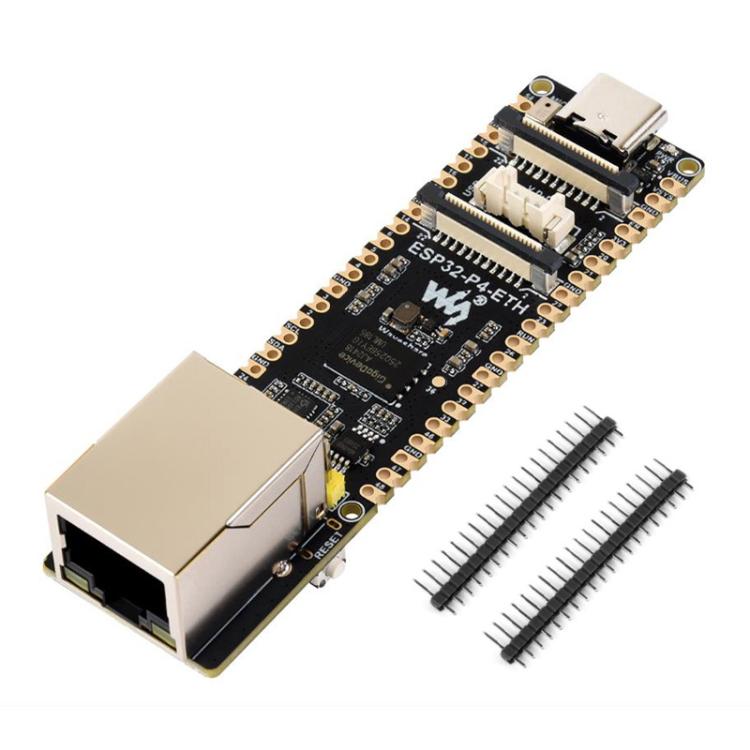

WAVESHARE ESP32-P4-ETH High-Performance Development Board With 100 Mbps RJ45 Ethernet Port

The WAVESHARE ESP32-P4-ETH is a high-performance development board designed for electronics projects. It is suitable for development use, providing advanced processing capabilities for image and voice applications.

• Product Type: Development Board
• Compatibility: ESP32-P4-ETH
• Material: Various
• Key Feature: High-performance MCU
• Processor: RISC-V 32-bit dual-core and single-core processors
• Memory: 128KB high-performance ROM, 16KB low-power ROM, 768KB high-performance secondary storage, 32KB low-power SRAM, 8KB register cache
• Image Processing: JPEG codec, Pixel Processing Accelerator (PPA), Image Signal Processor (ISP), H.264 video encoder
• PSRAM: 32MB stacked within the chip package
• NOR Flash: Externally integrated 32MB
• Peripheral Interfaces: MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Ethernet, SDIO 3.0 SD card slot, microphone, and speaker terminals
• GPIO: 27 additional programmable GPIOs via 2 × 20 pin headers
• Security Features: Secure boot, Flash encryption, hardware encryption accelerator, hardware random number generator, Access Permission Management (APM)
• Power Supply: Supports PoE and USB Type-C interface
• PoE Module: Enables networked power delivery via Ethernet cable
• AI Platform Support: Compatible with online large-model platforms such as Doubao and DeepSeek AI models
• Package Contents: ESP32-P4-ETH-M, 10.1-DSI-TOUCH-A, PoE module, screw pack, 8 ohms 2W speaker, Pi5-Camera-Cable-200mm, FFC 15-Pin flat cable, RPi Camera (B), MX1.25 4-Pin to USB Cable, MIPI-DSI-Cable-12cm, MX1.25 2-pin to 2.54mm 3-pin adapter cable, FFC cable 22-pin approx. 200mm, MX1.25 2-pin to MX1.25 4-pin about 150mm, copper pillar package
