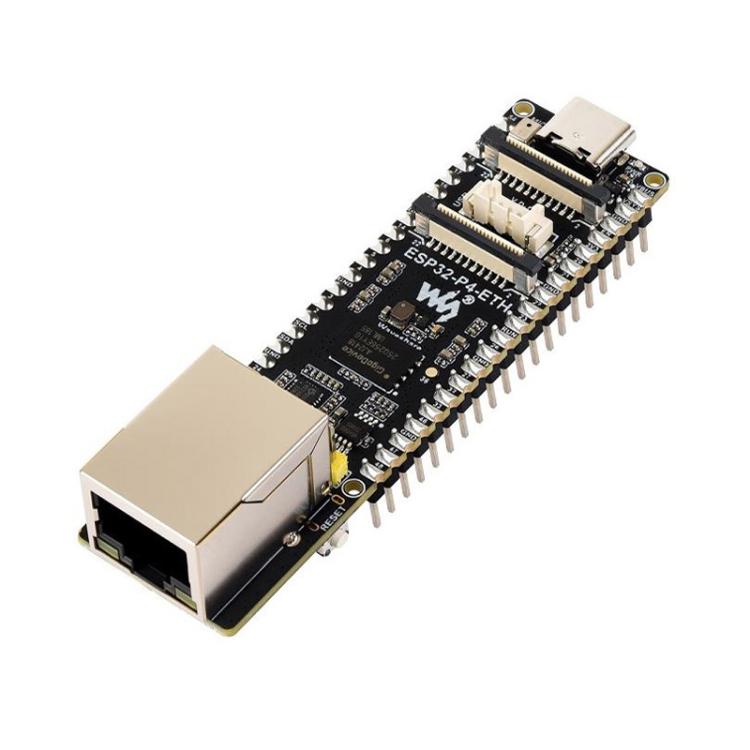

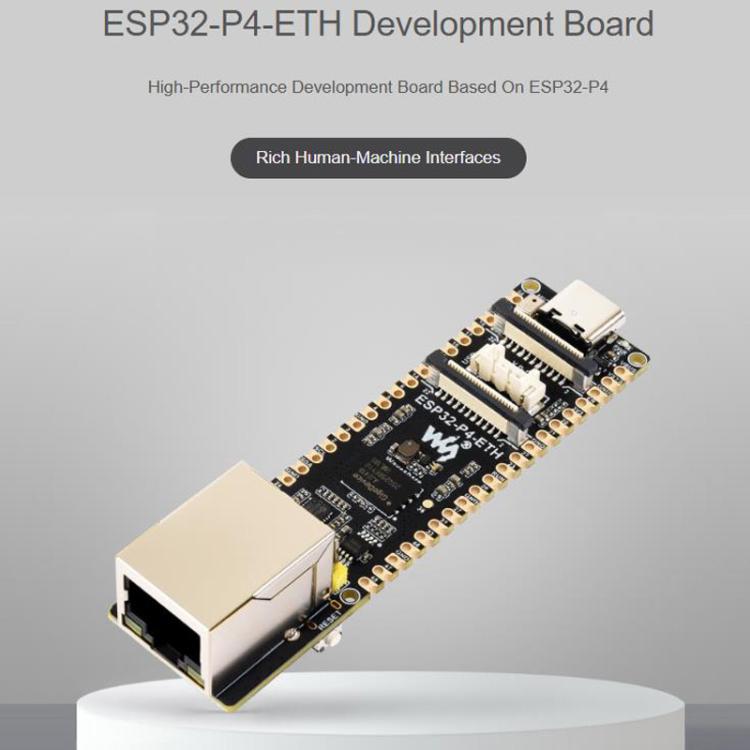

WAVESHARE ESP32-P4-ETH-M High-Performance Development Board With 100 Mbps RJ45 Ethernet Port

The WAVESHARE ESP32-P4-ETH-M is a high-performance development board designed for electronics projects. It is suitable for applications requiring advanced image and voice processing capabilities.

• Product Type: Development Board
• Compatibility: ESP32-P4
• Material: Not specified
• Key Feature: High-performance MCU
• Processor: RISC-V 32-bit dual-core and single-core processors
• Memory: 128KB high-performance ROM, 16KB low-power ROM, 768KB high-performance secondary storage, 32KB low-power SRAM, 8KB register cache
• Image Processing: JPEG codec, Pixel Processing Accelerator (PPA), Image Signal Processor (ISP), H.264 video encoder
• PSRAM: 32MB stacked within the chip package

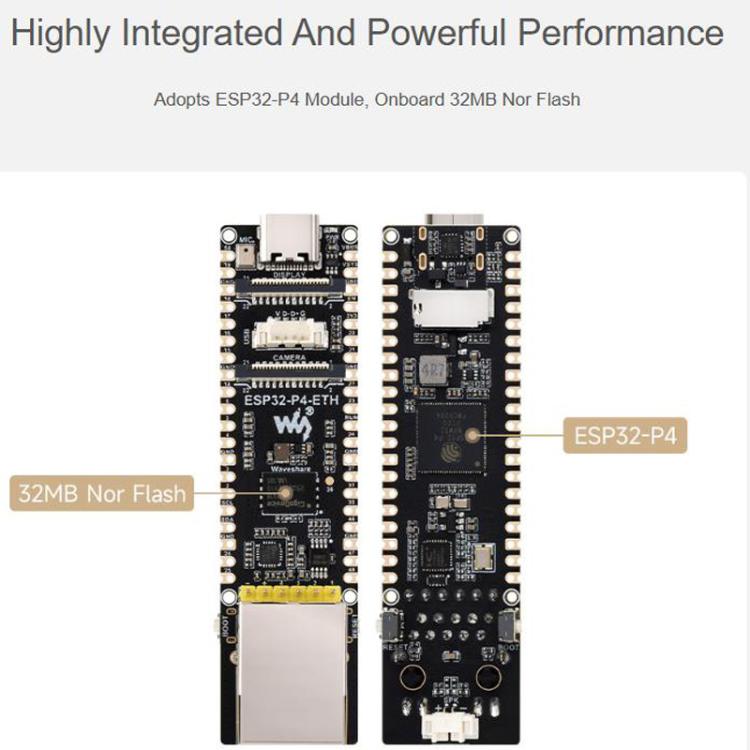

• Flash: Externally integrated 32MB NOR Flash

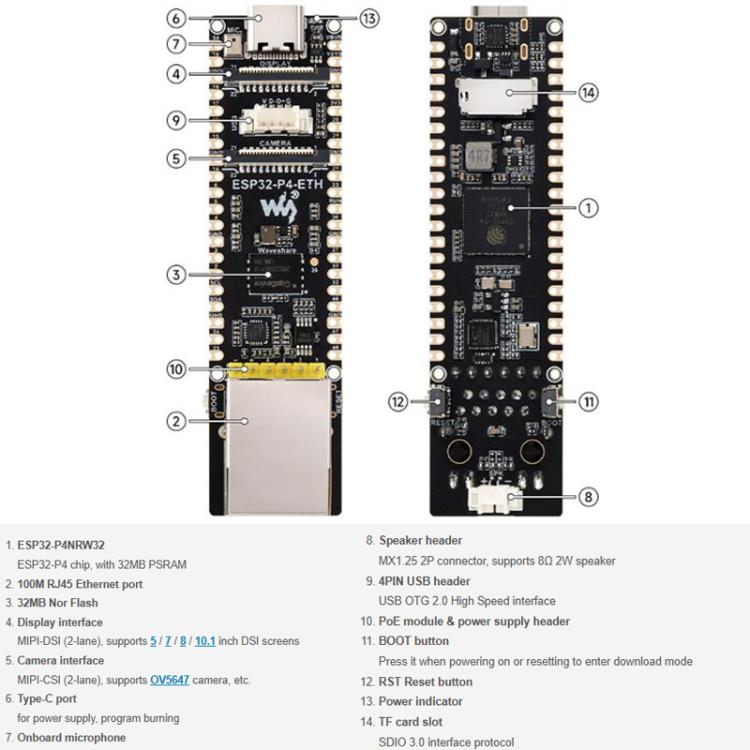

• Peripheral Interfaces: MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Ethernet, SDIO 3.0 SD card slot, microphone, and speaker terminals

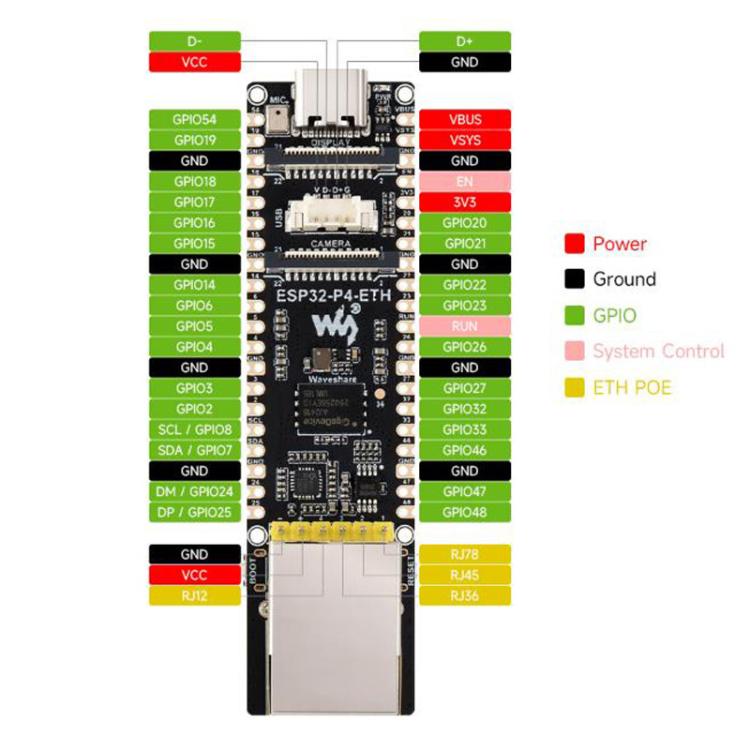

• GPIO: 27 additional programmable GPIOs via 2 × 20 pin headers
• Security: Secure boot, Flash encryption, hardware encryption accelerator, hardware random number generator, Access Permission Management (APM)

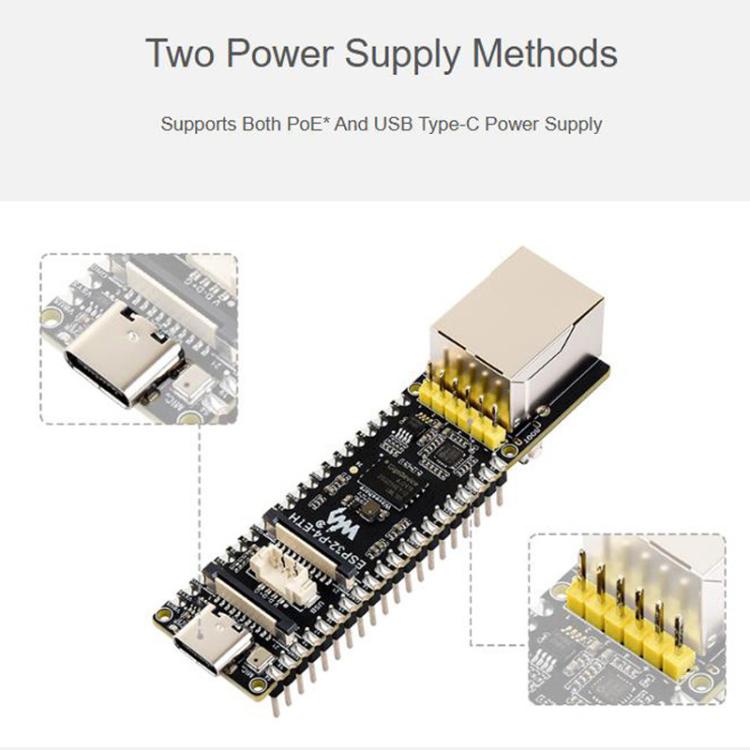

• Power Supply: Supports PoE and USB Type-C interface

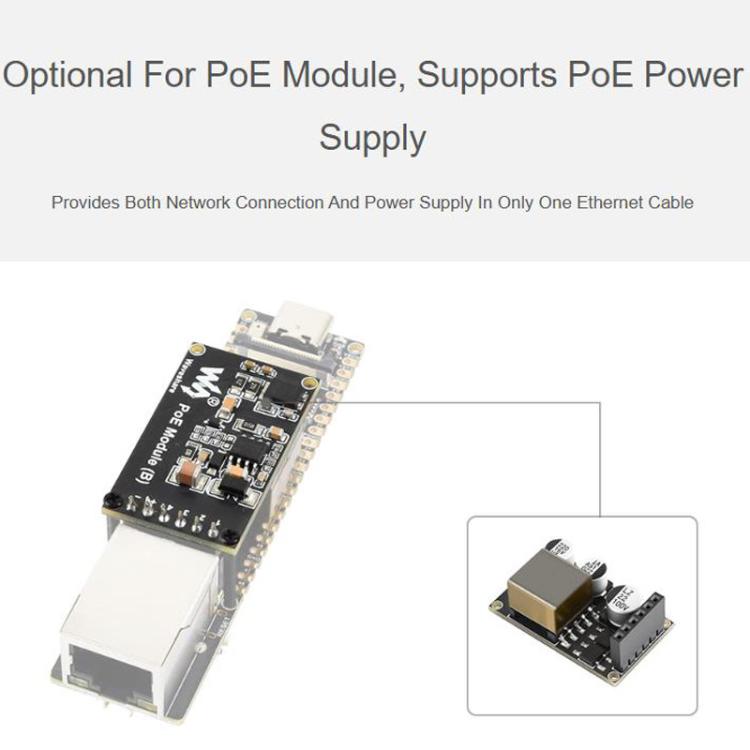

• PoE Integration: Enables networked power delivery via a single Ethernet cable

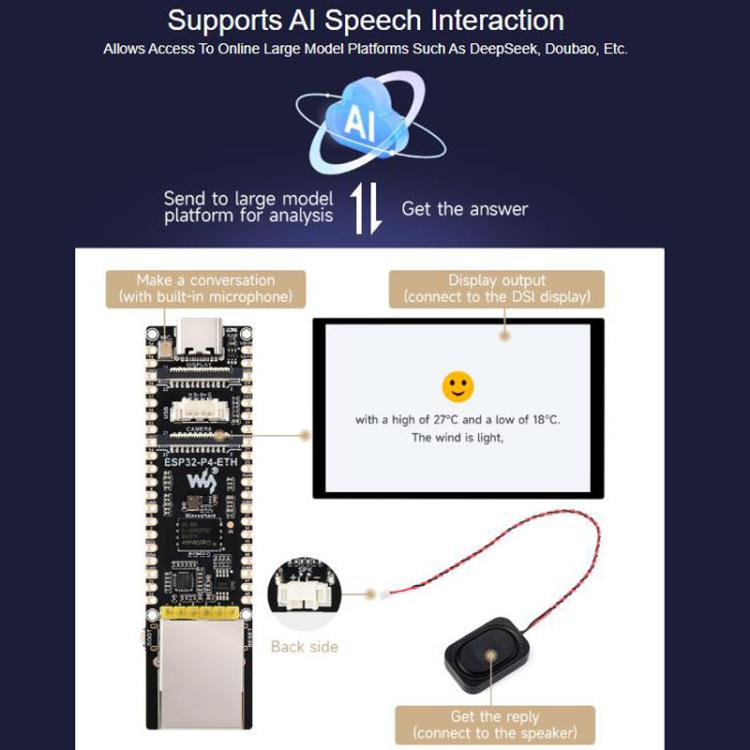

• AI Platform Support: Compatible with online large-model platforms such as Doubao and DeepSeek AI models

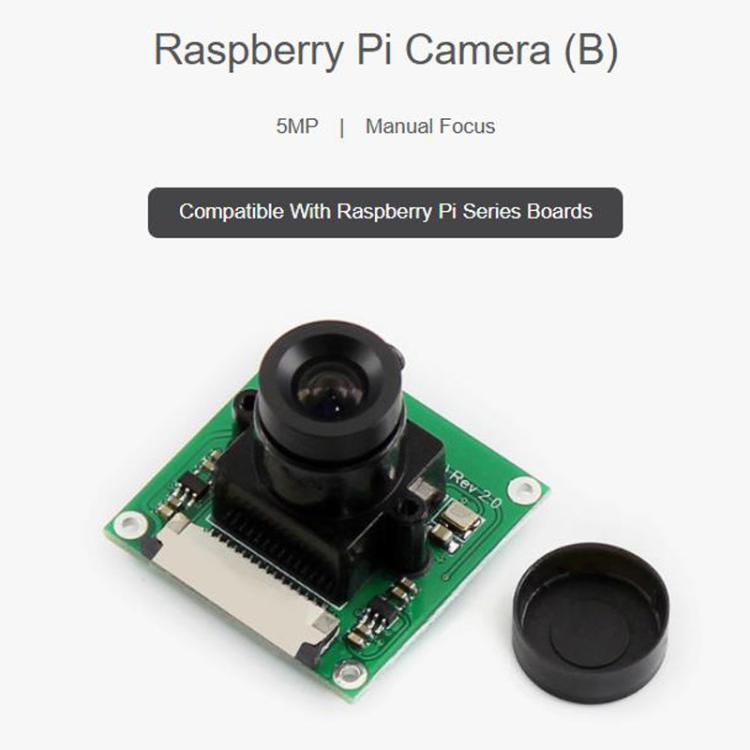

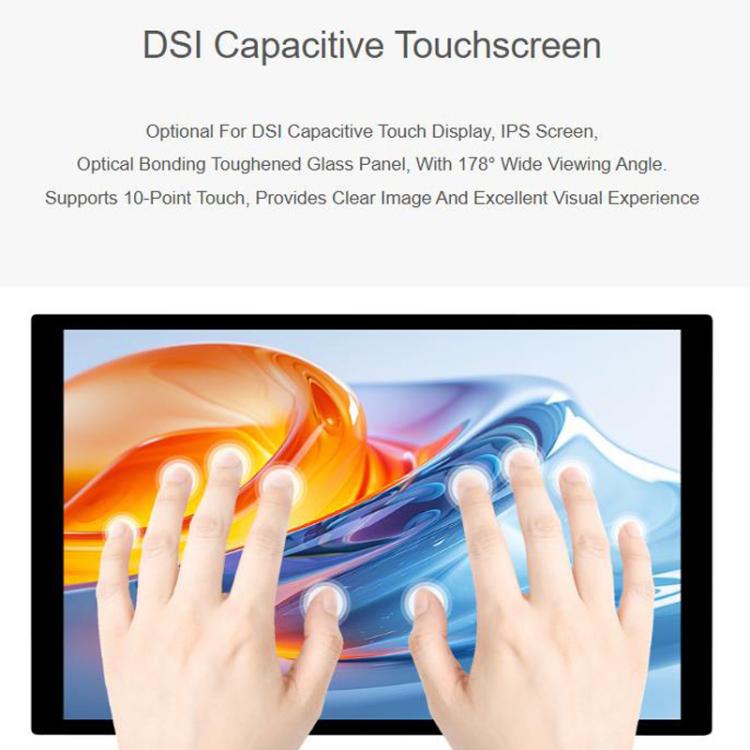

• Package Contents: ESP32-P4-ETH-M x 1, 10.1-DSI-TOUCH-A x 1, PoE module x 1, screw pack x 1, 8 ohms 2W speaker x 1, Pi5-Camera-Cable-200mm x 1, FFC 15-Pin flat cable x 1, RPi Camera (B) x 1, MX1.25 4-Pin to USB Cable x 1, MIPI-DSI-Cable-12cm x 1, MX1.25 2-pin to 2.54mm 3-pin adapter cable x 1, FFC cable 22-pin approx. 200mm (opposite direction) x 2, MX1.25 2-pin to MX1.25 4-pin about 150mm x 1, copper pillar package x 1
