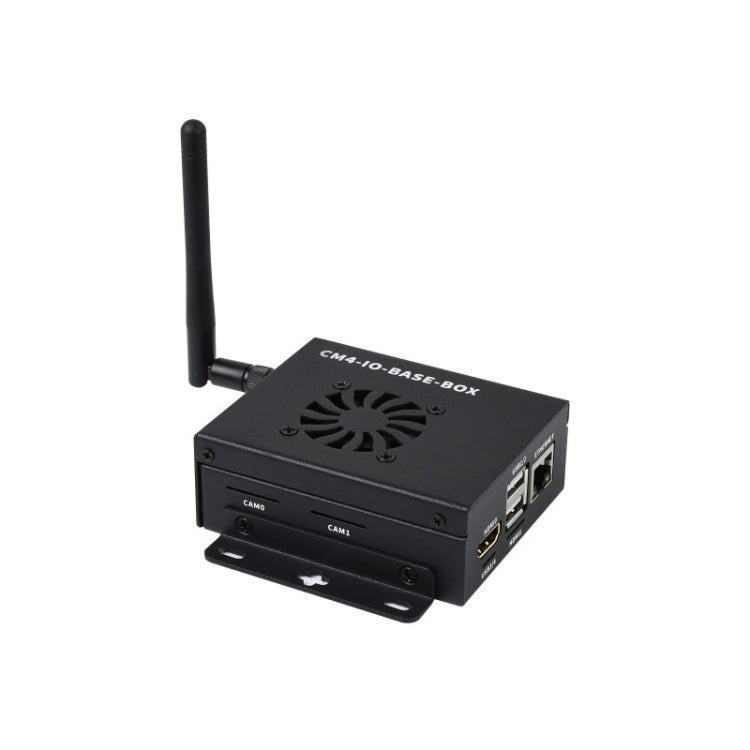

Waveshare Mini IO Board Full Ver Mini-Computer Base Box with Metal Case & Cooling Fan for Raspberry Pi CM4(US Plug)
Waveshare Mini IO Board Full Ver Mini-Computer Base Box with Metal Case & Cooling Fan for Raspberry Pi CM4(US Plug)
Available to order
Processing time: 1-3 days
Couldn't load pickup availability
Estimated delivery: 6-13 working days
Ships from South Africa • No import duties
Ships from China (Standard) • Import tax and duties included
Ships from China (Standard) • Import tax and duties excluded
Ships from Hong Kong (Direct) • Import tax and duties excluded
Description

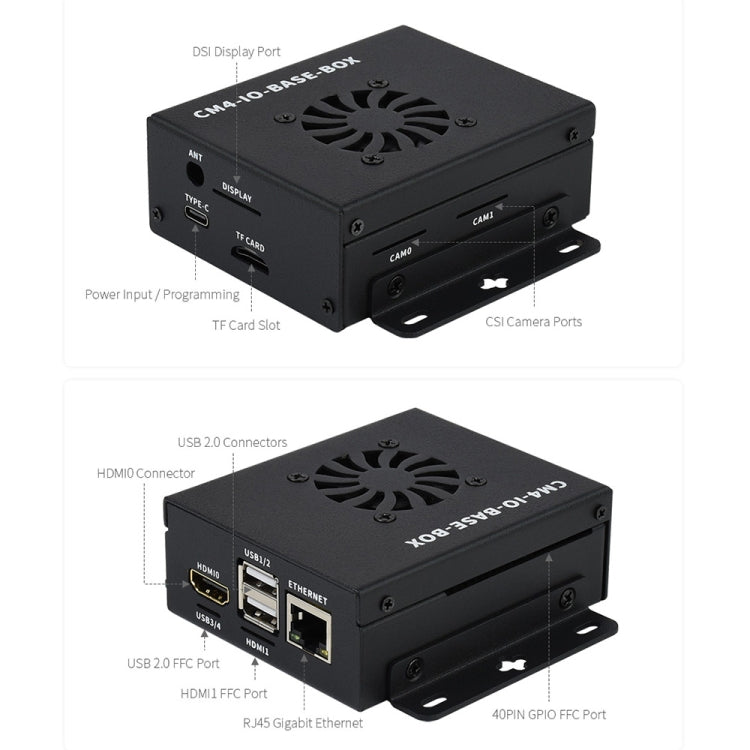

The Waveshare Mini IO Board is a mini PC accessory designed for the Raspberry Pi CM4. It provides essential connectivity options and cooling solutions for everyday computing tasks.
- Product Type: Mini PC Accessories
- Compatibility: Raspberry Pi CM4
- Material: Metal

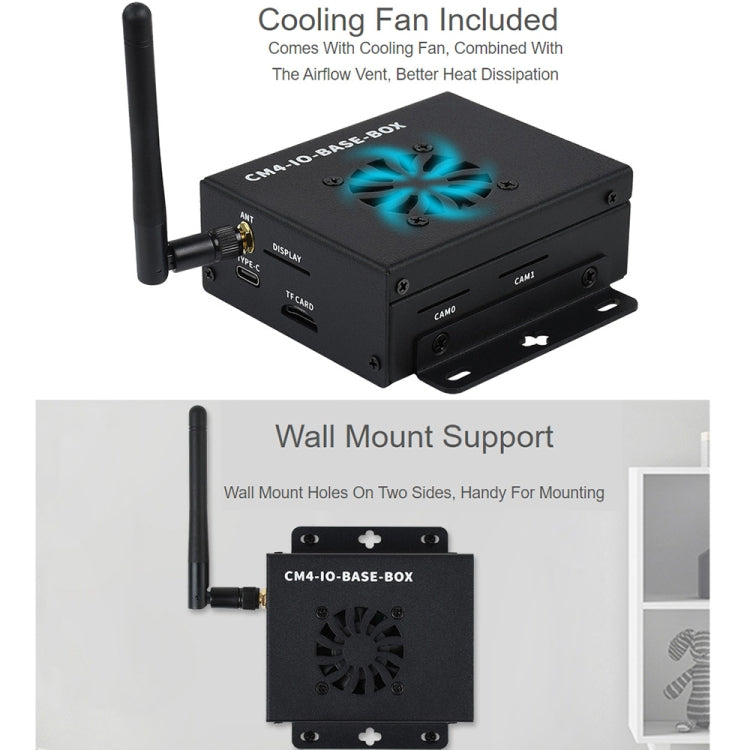

- Cooling Fan: Included

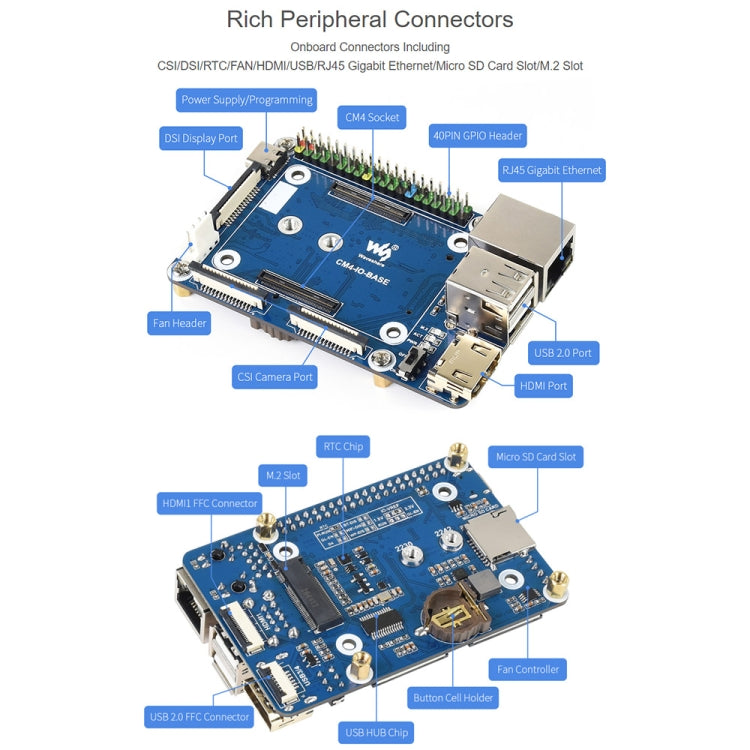

- USB Ports: 2 x USB 2.0, 2 x USB 2.0 (via FFC connector)
- GPIO: 40 PIN GPIO x 1
- Header: M.2 slot x 1
- HDMI: 2 x HDMI (1 x via FFC connector, supports 4K 30fps output)
- DSI Display: MIPI DSI x 1 (15pin 1.0mm FPC)
- CSI Camera: MIPI CSI-2 x 2 (15pin 1.0mm FPC)
- Power Input: 5V
- Fan Voltage: 5V / 12V (no fan control)
- Ethernet: Gigabit Ethernet

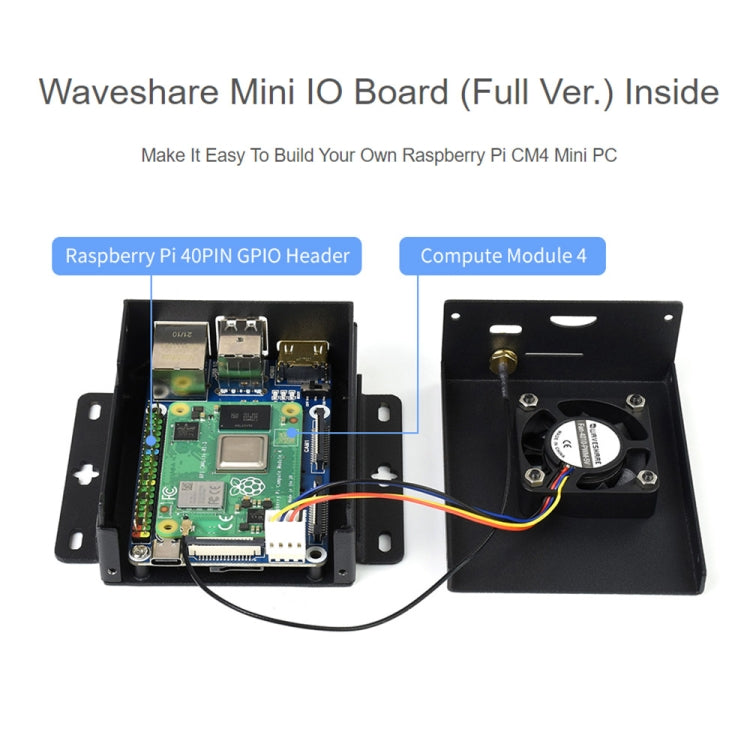

- CM4 Slot: Suitable for all variants of Compute Module 4
- SD Card Slot: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants

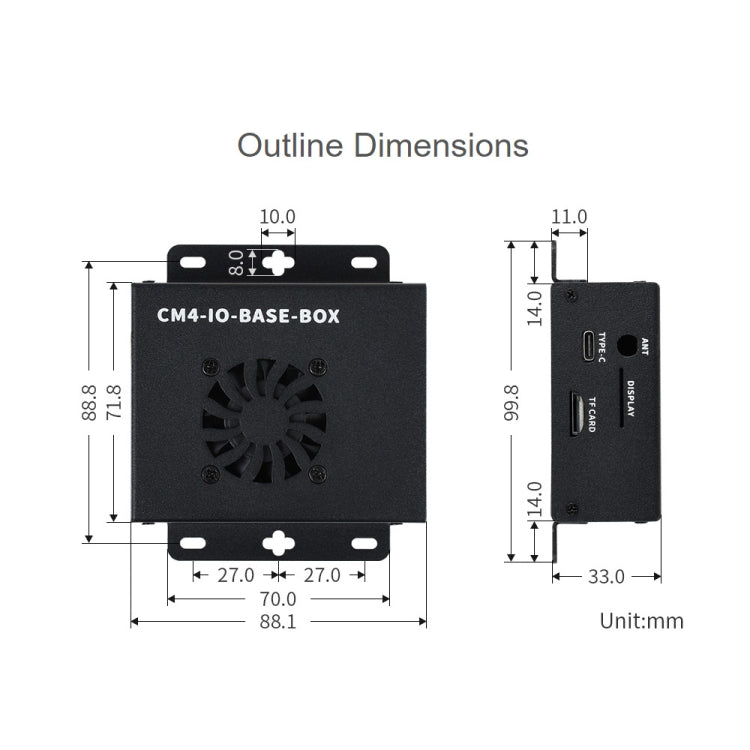

- Size: 85.0 x 56.0 mm
- Package Contents: CM4-IO-BASE-B x 1, Metal case (top and bottom) x 1, Fan-4010-PWM-5V x 1, Screwdriver x 1, Screws pack x 1, 5V 3A USB-C power adapter x 1
PMC TechLife is an independent retailer. Any third-party trademarks or brand names mentioned are the property of their respective owners and are used strictly to indicate product compatibility.
Questions about features, compatibility, or warranty? Chat with our local support team!
