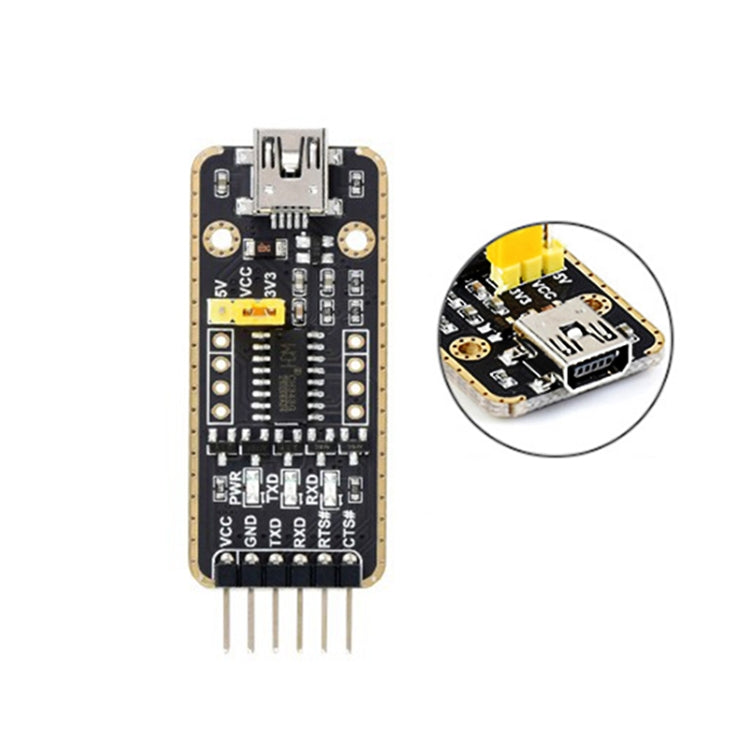

Waveshare Mini USB to UART High Band Rate Transmission Module Connectors

The Waveshare Mini USB to UART High Band Rate Transmission Module is an accessory designed for high-speed data transmission. It is suitable for applications requiring reliable communication between devices, such as connecting microcontrollers to computers.

• Product Type: Other Accessories
• Compatibility: Mini USB to UART Module
• Material: Durable materials
• Color: Black
• Key Feature: High data rate support (up to 6Mbps)
• Chip: CH343G, supports higher data rates and more serial port IO levels (5V / 3.3V / 2.5V / 1.8V)

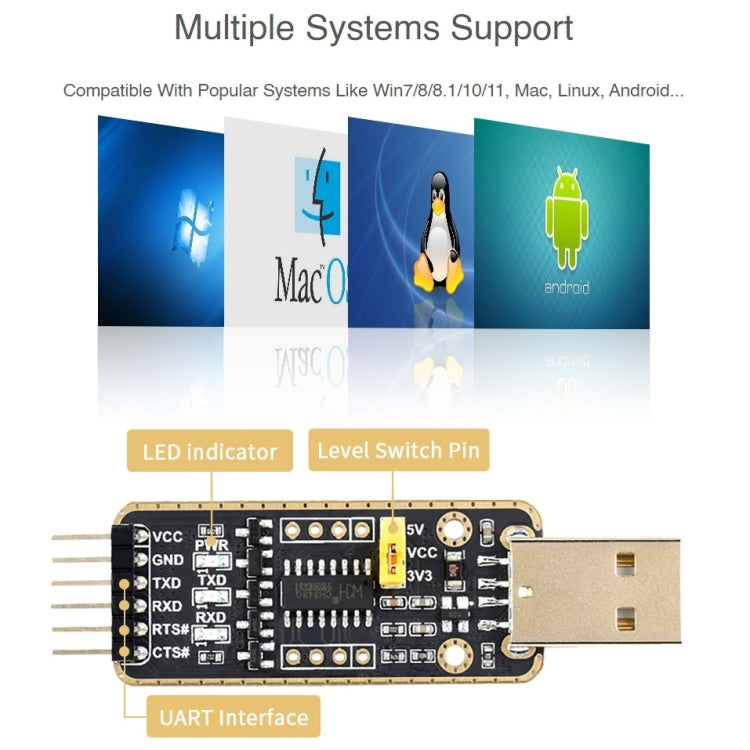

• Supported Operating Systems: Mac, Linux, Android, Windows 7/8/8.1/10/11

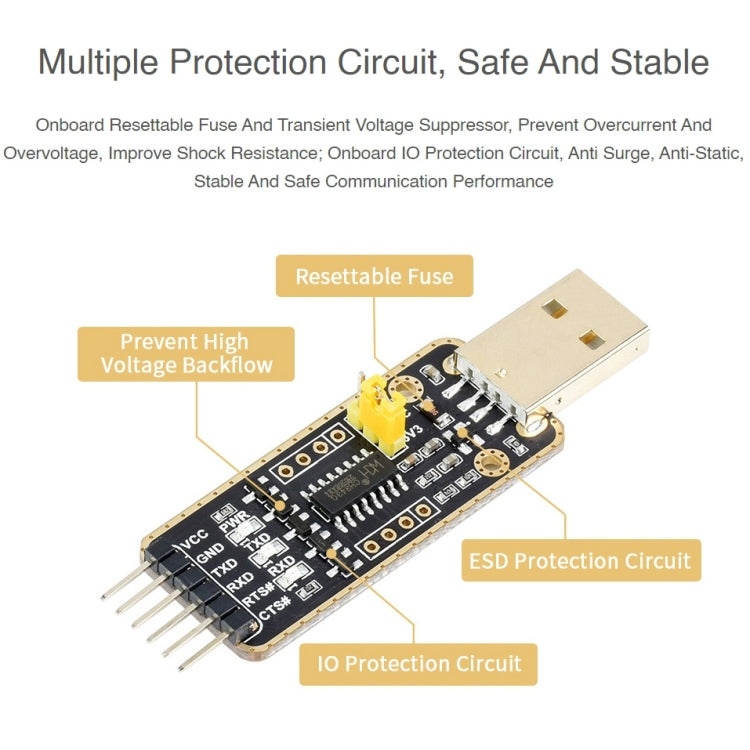

• Protection Features: Onboard resettable Fuse, Transient Voltage Suppressor, anti-overcurrent, anti-overvoltage, anti-surge, anti-static
• IO Protection: Onboard IO protection circuits
• TTL Level Switch Pins: 3.3V and 5V
• Power Supply: Powered by USB, jumper configurable to 3.3V or 5V
• Manufacturing Process: Double-sided black immersion gold process
• Indicators: PWR (Power), RXD (Receiving), TXD (Sending)
• Pinouts: VCC (5V or 3.3V), GND, TXD, RXD, RTS, CTS
• Host Interface: USB 2.0
• Device Interface: UART
• Communication Range: 50bps to 6Mbps

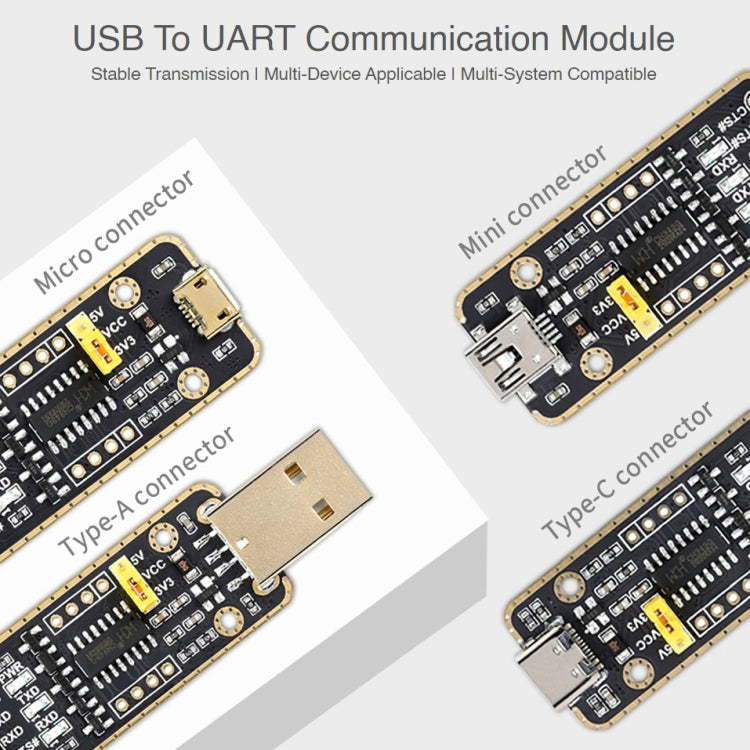

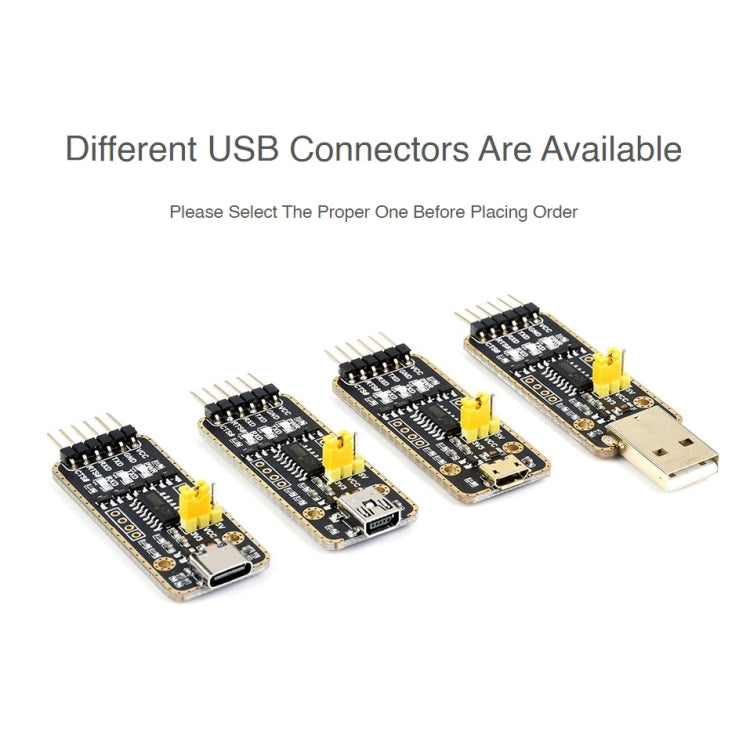

• USB Device Interface: Mini USB
• UART Interface Connector: 6-pin right-angle pinheader
• Protection: IO protection diode
