Description
The WAVESHARE RP2350 2.1 Inch Capacitive Touch Round Display Development Board is an electronics module designed for development use. It is suitable for projects requiring a touch interface and high-resolution display.
- Product Type: Arduino Nucleo Accessories
- Compatibility: RP2350
- Material: IPS

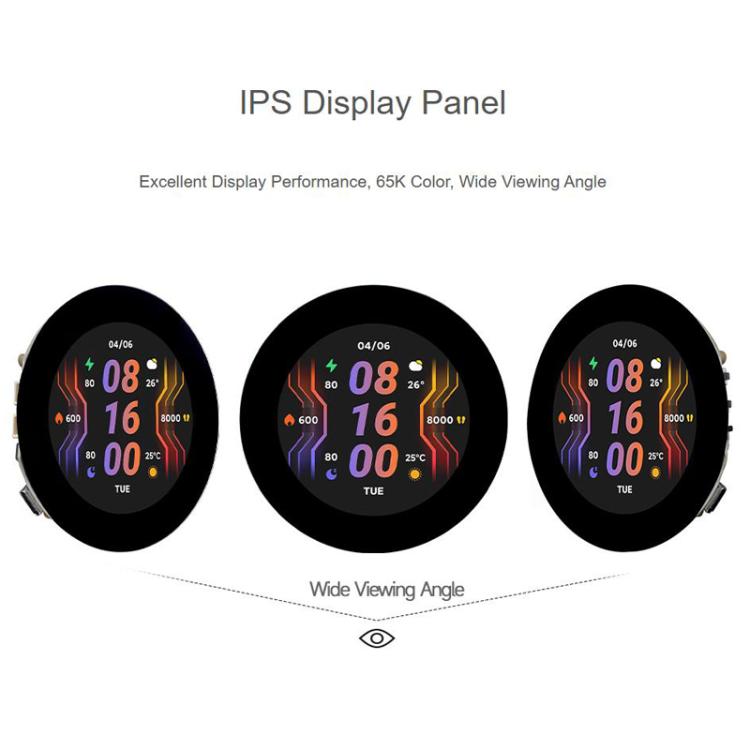

- Display Panel: IPS
- Display Resolution: 480 x 480
- Communication Interface: SPI + RGB
- Touch Interface: I2C
- Touch Type: Capacitive Induction

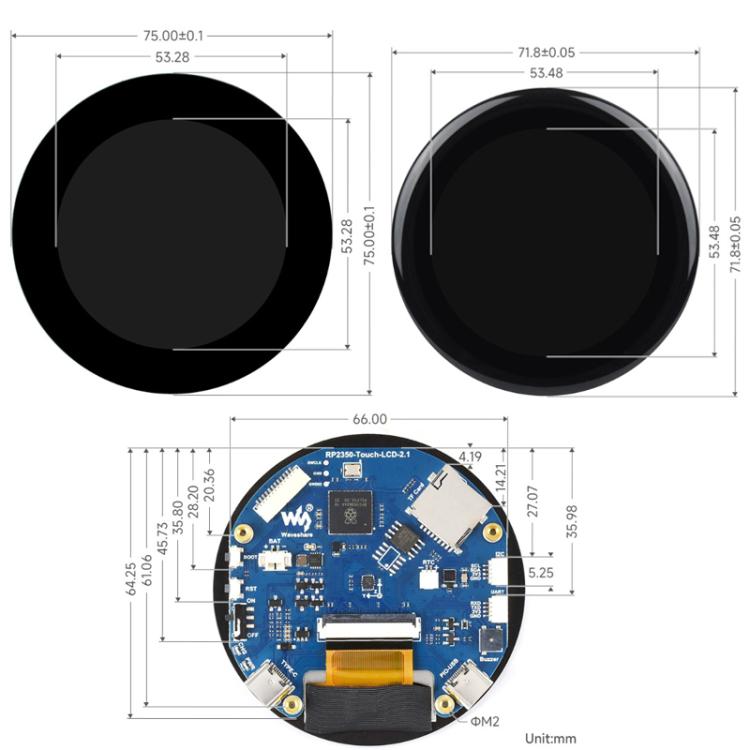

- Display Size: 2.1 inches
- Display Color: 65K
- Display IC: ST7701
- Touch IC: CST820
- Number of Touch Points: Single-touch

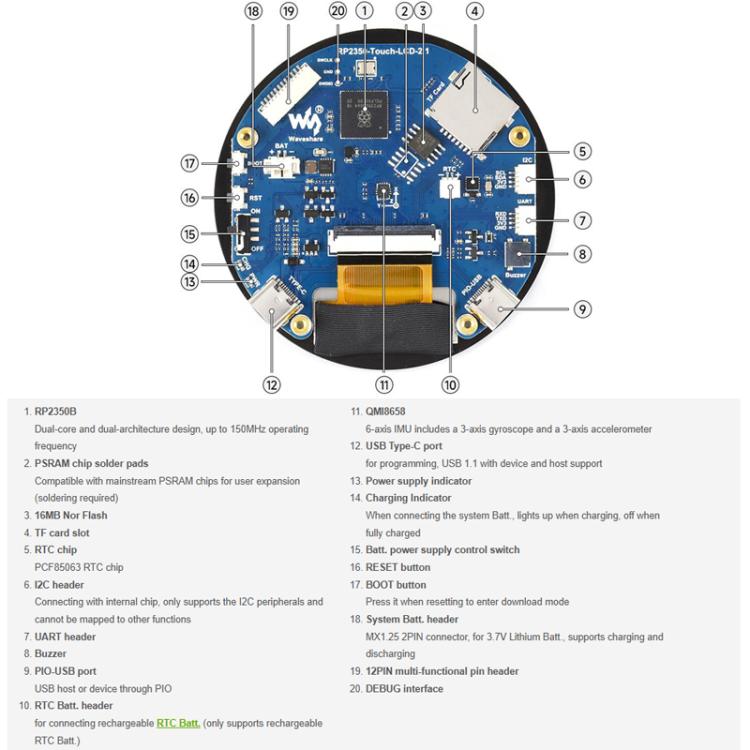

- Microcontroller Chip: RP2350B
- Processor: Dual-core ARM Cortex-M33 and RISC-V
- Clock Frequency: Up to 150MHz
- Built-in SRAM: 520KB
- On-chip Flash: 16MB
- PSRAM Interface: Reserved
- Interface Type: Type-C
- USB Support: USB1.1 host and slave
- Power Modes: Low-power sleep and hibernation
- USB Functionality: Recognized as mass storage for drag-and-drop program downloads

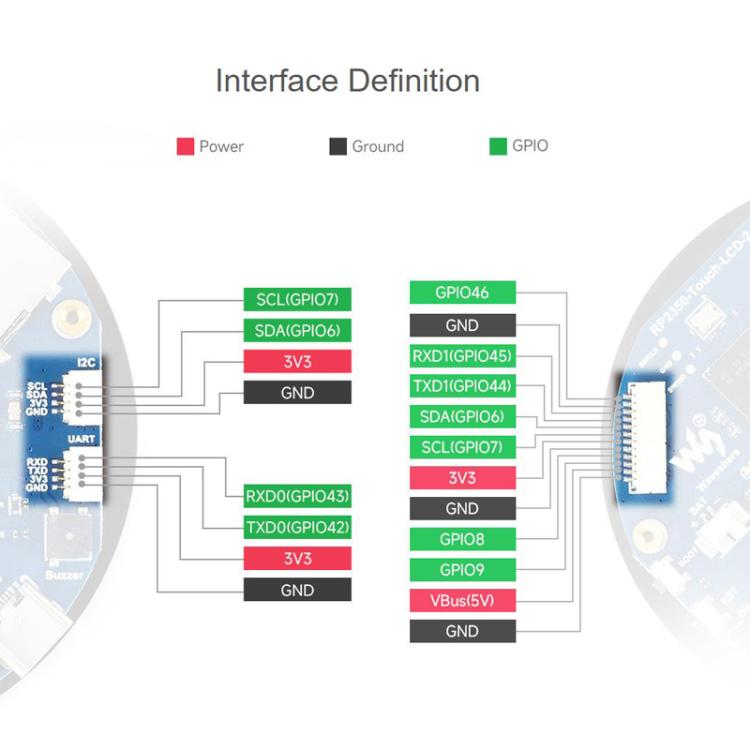

- GPIO Pins: 9 multi-functional
- Communication Protocols: 2 SPI, 2 I2C, 2 UART, 5 12-bit ADC, 9 controllable PWM channels
- Clock and Timer: Precision on-chip
- Temperature Sensors: Included
- Floating Point Library: On-chip accelerated
- Programmable I/O State Machines: 12 for custom peripheral support
