Waveshare RS485 to RJ45 Module TCP/IP to Serial Converters

Name: Waveshare RS485 to RJ45 Module TCP/IP to Serial Converters
Brand: WAVESHARE
SKU: PC8848
Price: 669.00 ZAR
Availability: InStock

R 669.00

Sale Sold out

FREE DELIVERY on all orders.

🔥 Buy 2 items, get 25% off 3rd item 🔥 Today only!

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

Features

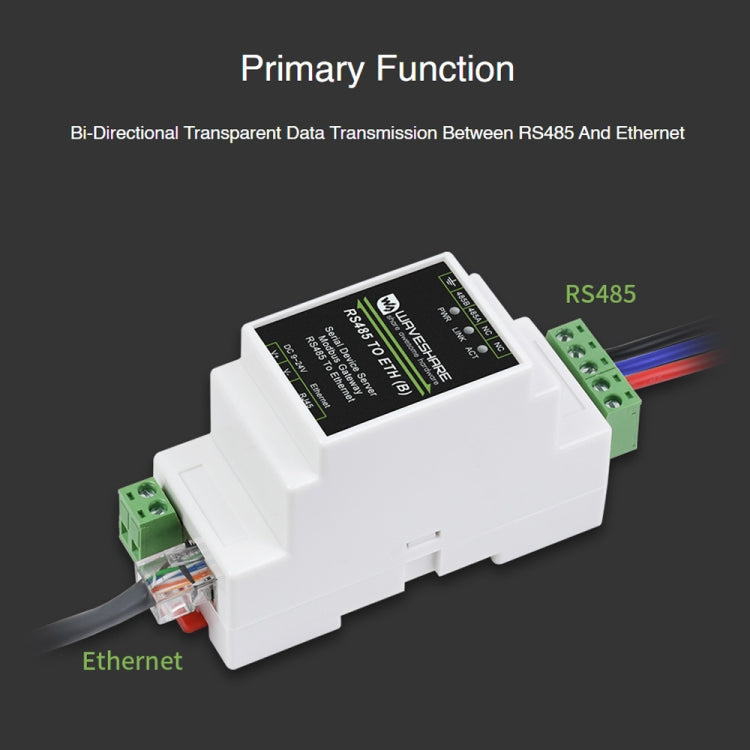

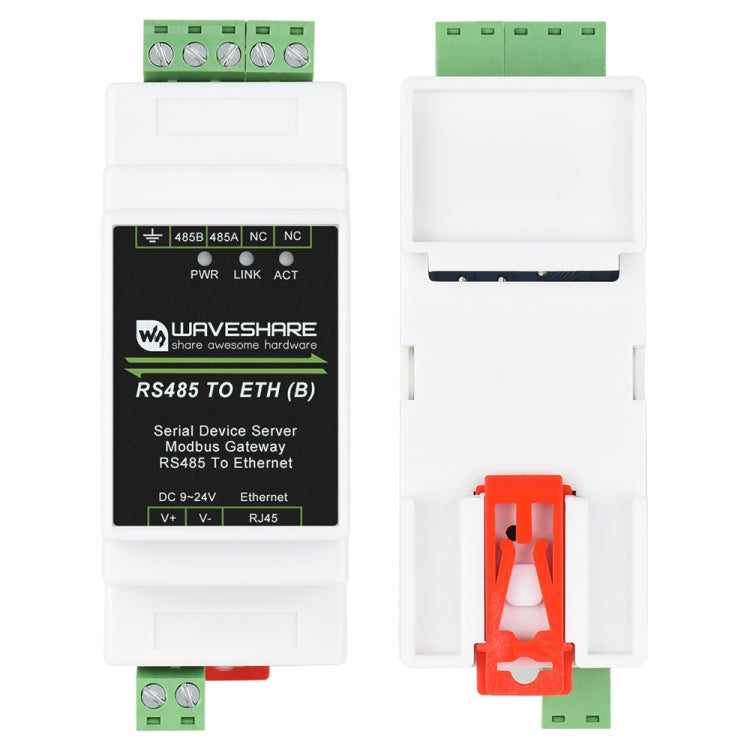

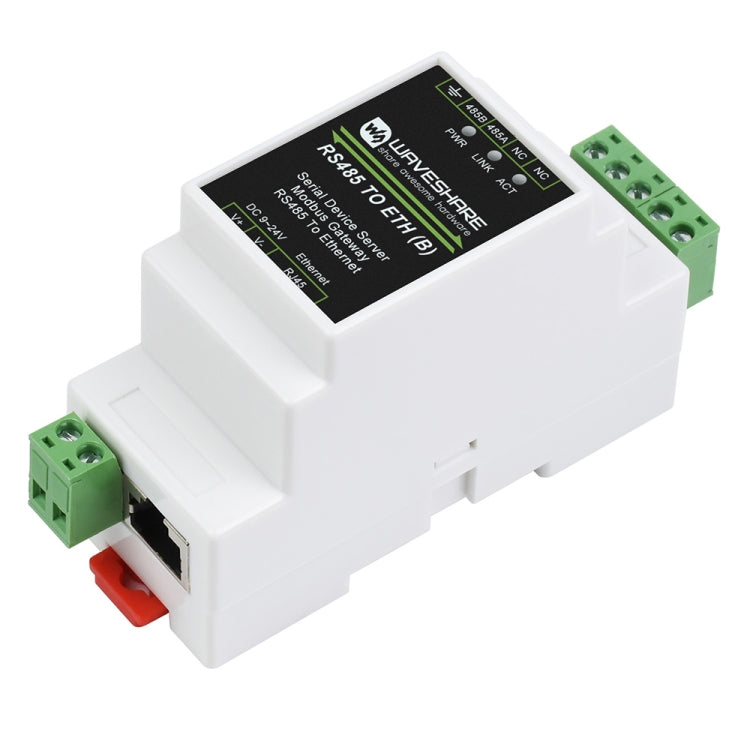

1. This is a RS485 device data acquisitor / IoT gateway designed for industrial environment.

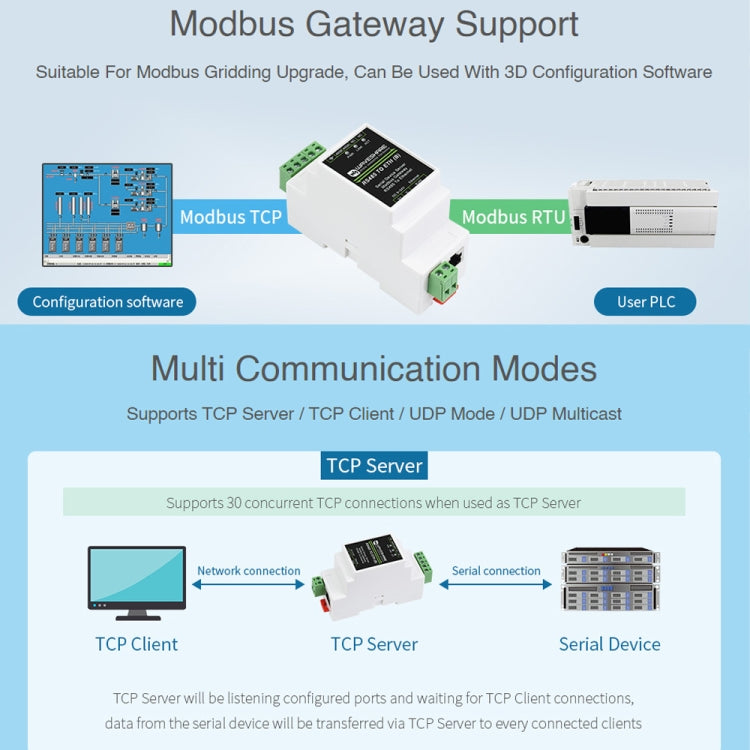

2. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS485 to JSON, etc.
3. The module features RS485 and Ethernet ports, uses screw terminals for power input, supports 9~24V wide range power supply.

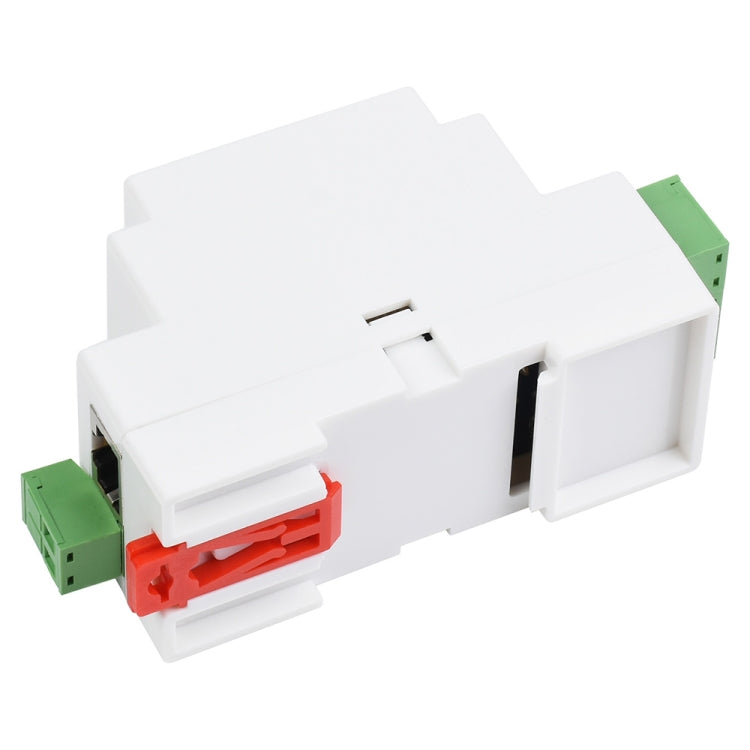

4. Rail-mount flame-retardant case design, small in size, easy to install.
5. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring...

Specifications
1. Communication interface: RS485, screw terminal, supports 32x slave devices
2. Power supply: 9 ~ 24V DC, screw terminal

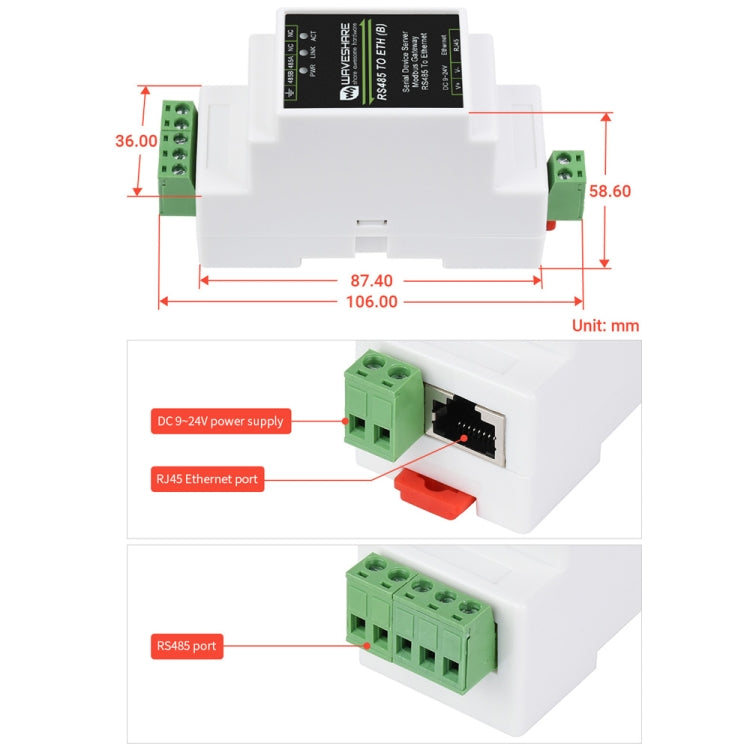

3. Dimensions (L x W x H): 87 x 36 x 59 mm
4. Ethernet: 10 / 100M auto-negotiation RJ45 connector, 2 KV surge protection
5. Serial port: RS485 ?? 1: RXD, TXD, GND
6. Baudrate: 300 ~ 115200 bps
7. Parity bit: None, odd, even, mark, space
8. Data bit: 5 ~ 9 bits
9. Flow control: N/A
10. Protocol: ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS
11. Configuration: Host, web browser, device management functions library
12. Communication method: TCP/IP direct communication, VCOM

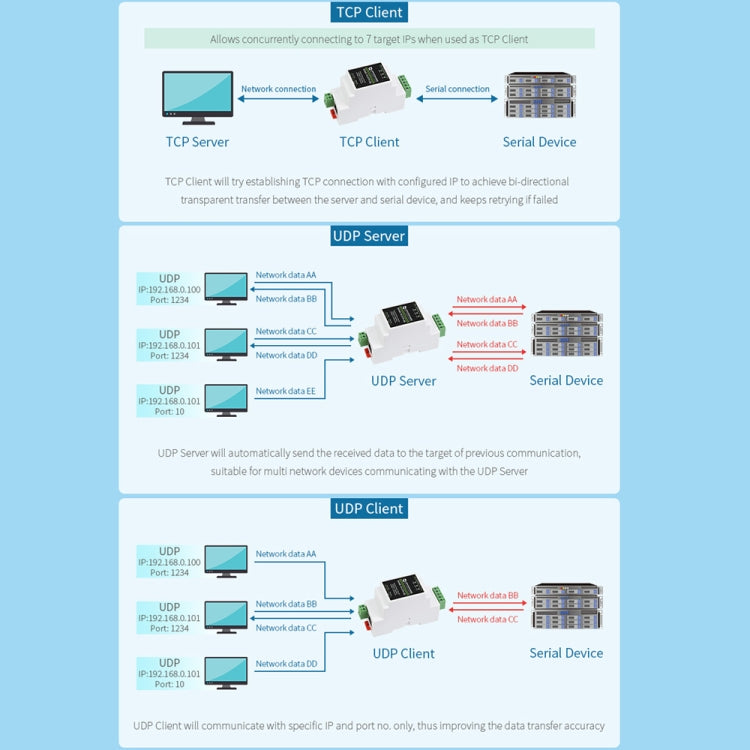

13. Operating mode: TCP server, TCP client (coexisting with TCP server), UDP, UDP multicast
14. Operating temperature: -40 degree C ~ 85 degree C
15. Storage temperature: -45 degree C ~ 165degree C
16. Humidity range: 5% ~ 95% relative humidity
