Description

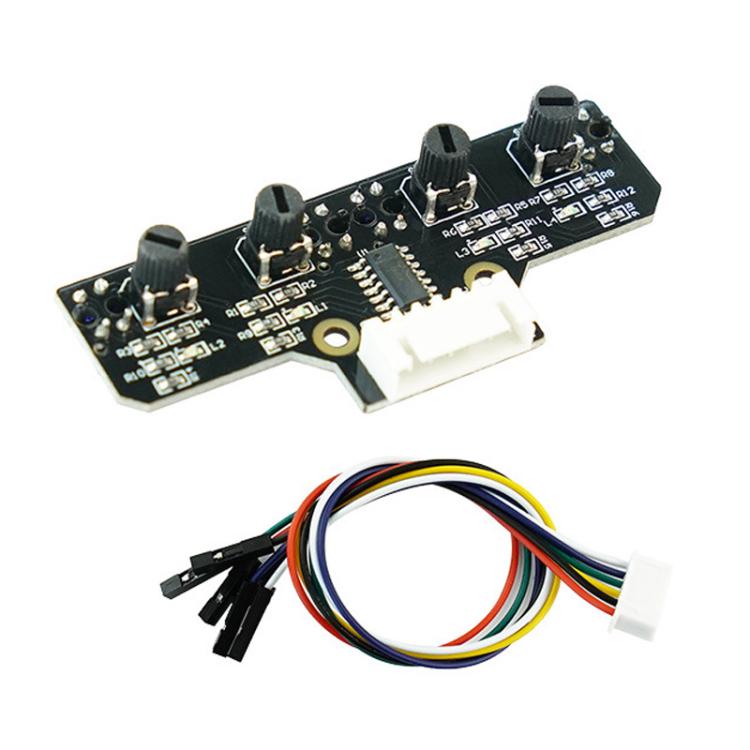

The Yahboom 4 Channel Infrared Tracking Sensor Module is a sensor module designed for smart car robots. It enables the vehicle to detect and follow black lines on various surfaces, including recognizing turns and complex paths.
- Product Type: Sensor Module
- Compatibility: Smart Car Robot
- Material: PCB

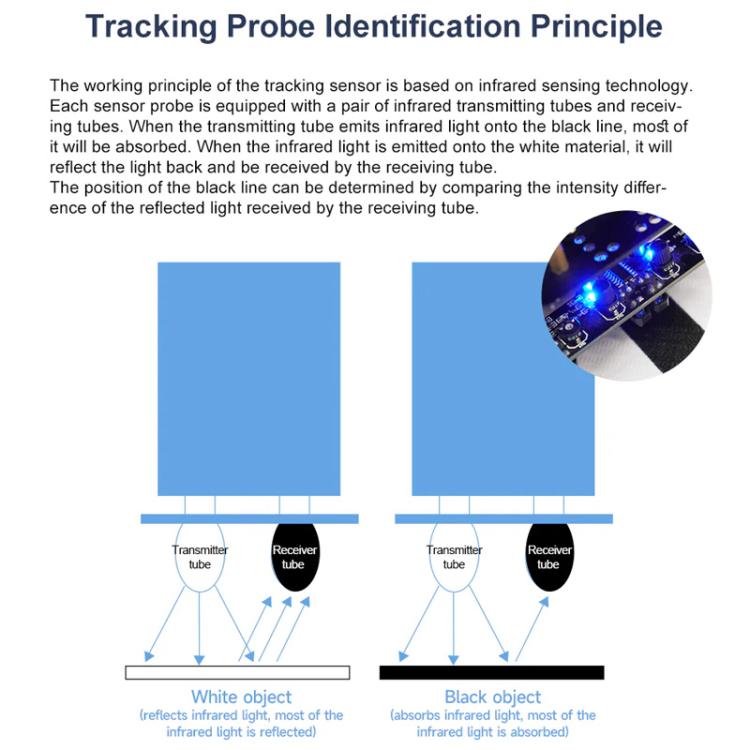

- Key Feature: Infrared tracking
- Operating Voltage: 3.3V - 5V
- Operating Temperature: -10 to +50 degrees Celsius
- Installation Hole Diameter: M3 copper post/screw
- Operating Current: 10mA - 50mA
- Detection Distance: Adjustable from 1mm to 50mm (recommended around 8mm)
- Product Size: 70 x 29mm
- Output Interface: 6-pin interface, 1234 are 4 signal output terminals, + represents positive power supply, - represents negative power supply
- Output Signal: TTL level (can be directly connected to the I/O port of the microcontroller)

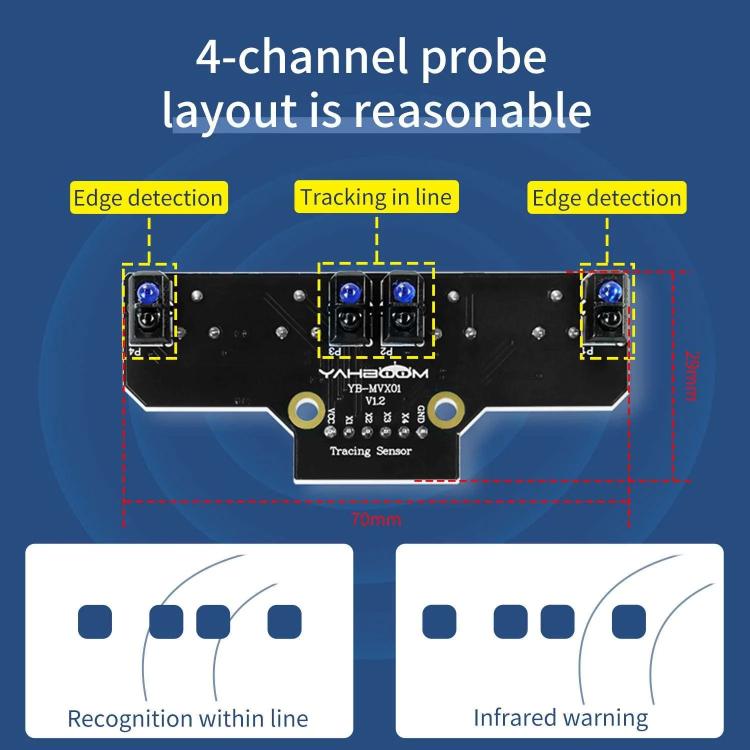

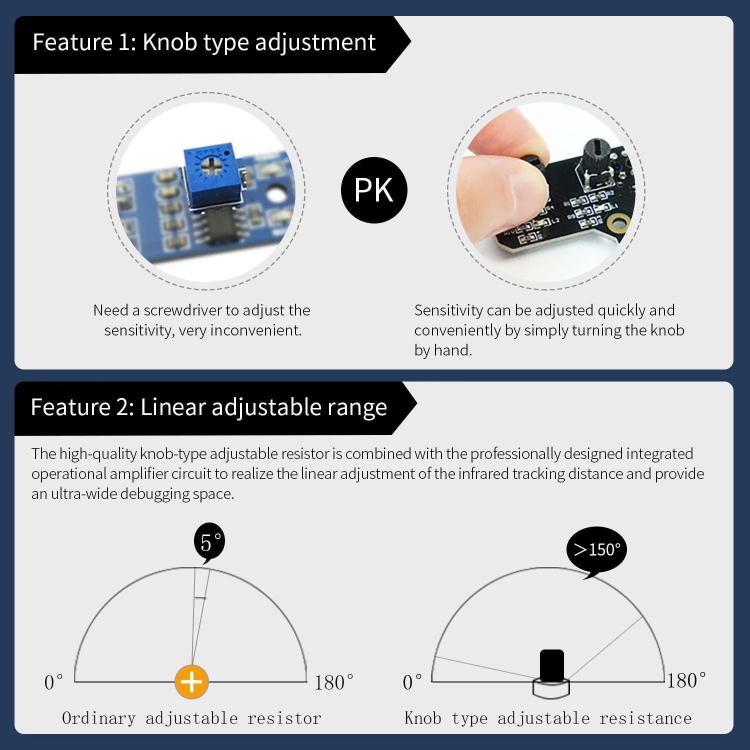

- Features: Four tracking probes, adjustable sensitivity, shock-resistant design, anti-reverse connection
- Additional Resources: Reference materials, driver source code, graphical programming tools provided
